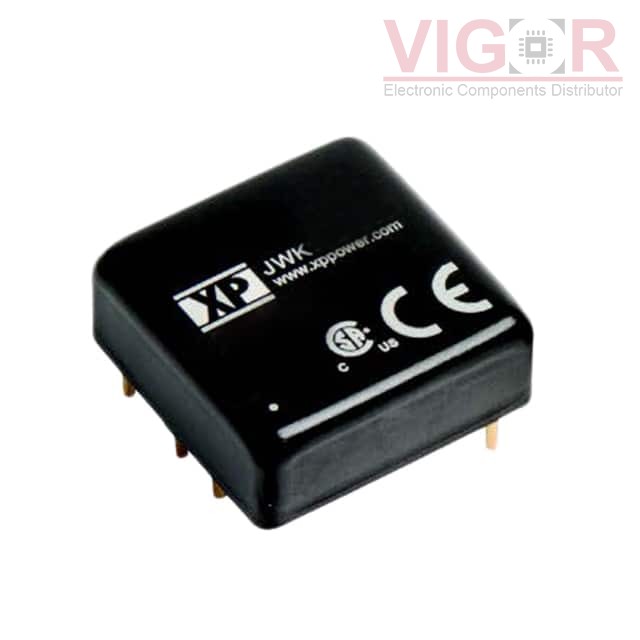

JSM1048S05

Part No :: JSM1048S05

Manufacturer: XP Power

VIGOR # :: 4160632

Description: DC DC CONVERTER 5V 10W

Catalog: DC DC Converters

DataSheet: JSM1048S05 PDF

Country of origin: -

Date code: -

JSM1048S05 Specifications

Type	Description
Series:	JSM10 (10W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module, 5 Leads
Size / Dimension:	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
RP12-11005SAR/XC Match 78%	RECOM Power DC DC CONVERTER 5V 12W	JSM1048S05 vs RP12-11005SAR/XC
MPM15-48S05 Match 56%	P-Duke Technology, Inc. ISOLATED / 15W/ VOUT:5	JSM1048S05 vs MPM15-48S05
JWK1048S3V3 Match 60%	XP Power DC DC CONVERTER 3.3V 10W	JSM1048S05 vs JWK1048S3V3
JWK1048S05 Match 100%	XP Power DC DC CONVERTER 5V 10W	JSM1048S05 vs JWK1048S05
MPM15-48S05W Match 56%	P-Duke Technology, Inc. ISOLATED / 15W/ VOUT:5	JSM1048S05 vs MPM15-48S05W
REM15-4805SW Match 56%	RECOM Power DC DC CONVERTER 5V 15W	JSM1048S05 vs REM15-4805SW

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1782

Shipped from

HK warehouse

Expected Shipping Date

Oct 26 - Oct 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$28.0000~~	~~$28.00~~
5	~~$27.1600~~	~~$135.80~~
10	~~$26.3200~~	~~$263.20~~
25	~~$25.2000~~	~~$630.00~~
100	~~$23.5200~~	~~$2 352.00~~

Current price of JSM1048S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
