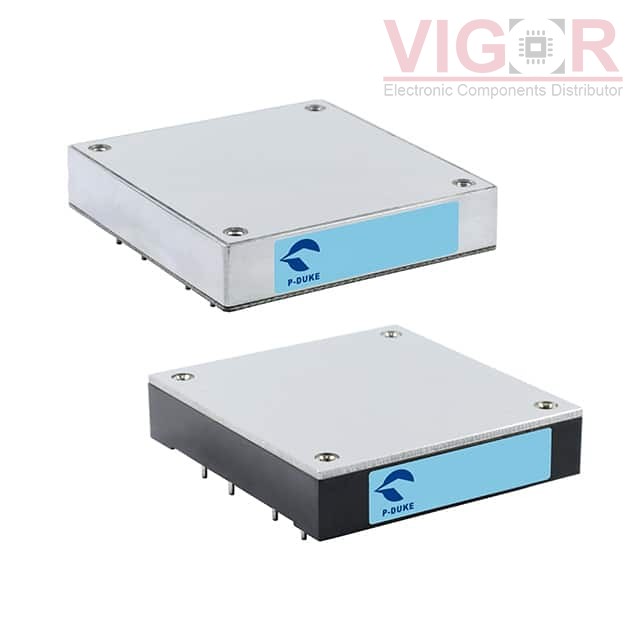

HAE100-12S12

Part No :: HAE100-12S12

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4160713

Description: ISOLATED/100W /VOUT:12

Catalog: DC DC Converters

DataSheet: HAE100-12S12 PDF

Country of origin: -

Date code: -

HAE100-12S12 Specifications

Type	Description
Series:	HAE100 (100W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.4A
Power (Watts):	101 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	CB, CE, cURus
Standard Number:	60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
RP100H-2412SRW/N-HC Match 96%	RECOM Power DC DC CONVERTER 12V 100W	HAE100-12S12 vs RP100H-2412SRW/N-HC
CHE100W-24S12N Match 91%	Cincon DC DC CONVERTER 12V 101W	HAE100-12S12 vs CHE100W-24S12N
RP100H-2412SRW/N Match 96%	RECOM Power DC DC CONVERTER 12V 100W	HAE100-12S12 vs RP100H-2412SRW/N
HAE100-24S12W Match 100%	P-Duke Technology, Inc. ISOLATED/100W /VOUT:12	HAE100-12S12 vs HAE100-24S12W
RP100H-2412SRW/P Match 96%	RECOM Power DC DC CONVERTER 12V 100W	HAE100-12S12 vs RP100H-2412SRW/P
RP100H-2412SRW/P-HC Match 96%	RECOM Power DC DC CONVERTER 12V 100W	HAE100-12S12 vs RP100H-2412SRW/P-HC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 277

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$159.0900~~	~~$159.09~~

Current price of HAE100-12S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

BY05-05S20H

DC DC CONVERTER 5V 1W

17791063215

DC DC CONVERTER 3.3-6V 1W

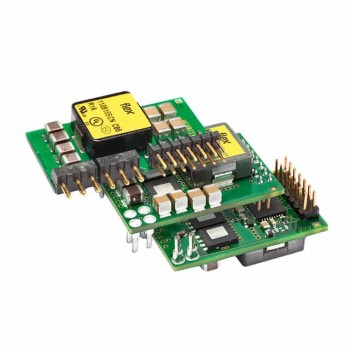

BMR4640008/001
