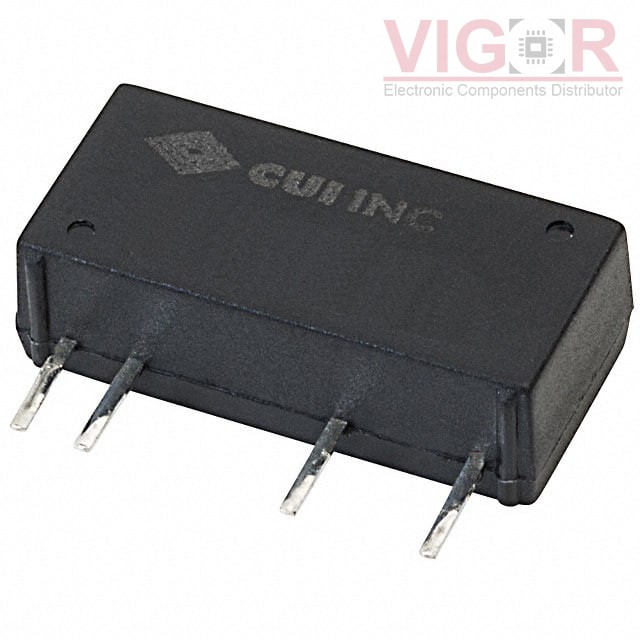

PEM1-S15-S5-S

Part No :: PEM1-S15-S5-S

Manufacturer: CUI Inc.

VIGOR # :: 4161254

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PEM1-S15-S5-S PDF

Country of origin: -

Date code: -

PEM1-S15-S5-S Specifications

Type	Description
Series:	PEM1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	13.5V
Voltage - Input (Max):	16.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55024; 55032 Class A; 61000-3-2; 61000-3-3

Alternative Products

Part Number	Manufacturer & Description	Compare
1S7B_1505S4UP Match 96%	TE Connectivity AMP Connectors DC-DC	PEM1-S15-S5-S vs 1S7B_1505S4UP
PEM2-S15-S5-S Match 50%	CUI Inc. DC DC CONVERTER 5V 2W	PEM1-S15-S5-S vs PEM2-S15-S5-S
B1505LS-1WR3 Match 91%	Mornsun DC DC CONVERTER 5V 1W	PEM1-S15-S5-S vs B1505LS-1WR3
0.5S7B_1505S3UP Match 50%	TE Connectivity AMP Connectors DC-DC	PEM1-S15-S5-S vs 0.5S7B_1505S3UP
VFSD1-S15-S5-SIP Match 100%	CUI Inc. DC DC CONVERTER 5V 1W	PEM1-S15-S5-S vs VFSD1-S15-S5-SIP
F1505S-1WR3 Match 100%	Mornsun DC DC CONVERTER 5V 1W	PEM1-S15-S5-S vs F1505S-1WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 248

Shipped from

HK warehouse

Expected Shipping Date

Aug 28 - Sep 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.9200~~	~~$4.92~~
5	~~$4.8480~~	~~$24.24~~
12	~~$4.7767~~	~~$57.32~~
36	~~$4.6364~~	~~$166.91~~
60	~~$4.4960~~	~~$269.76~~
108	~~$4.3555~~	~~$470.39~~
252	~~$4.2150~~	~~$1 062.18~~
504	~~$3.9340~~	~~$1 982.74~~

Current price of PEM1-S15-S5-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
