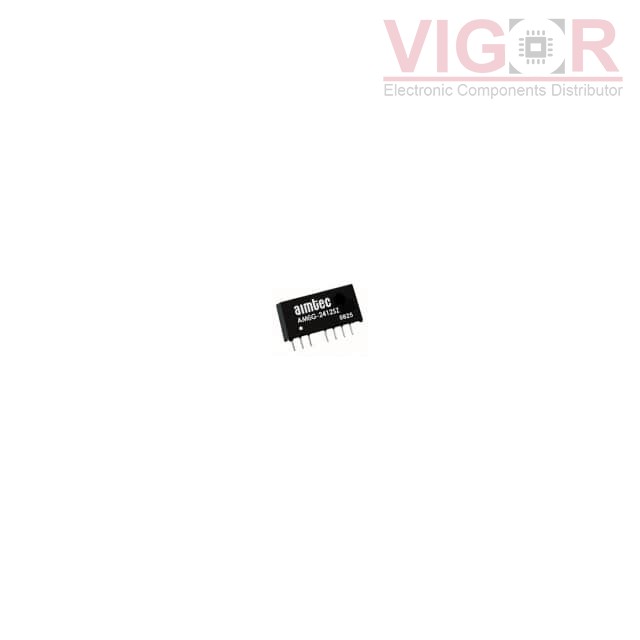

AM6G-0503SH30Z

Part No :: AM6G-0503SH30Z

Manufacturer: DComponents

VIGOR # :: 4161454

Description: DC DC CONVERTER 3.3V 4.3W

Catalog: DC DC Converters

DataSheet: AM6G-0503SH30Z PDF

Country of origin: -

Date code: -

AM6G-0503SH30Z Specifications

Type	Description
Series:	AM6G-Z (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.3A
Power (Watts):	4.3 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 65°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus, UL
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
IZ0503SA Match 55%	XP Power DC DC CONVERTER 3.3V 3W	AM6G-0503SH30Z vs IZ0503SA
TMR 3-0510HI Match 55%	TRACO Power DC DC CONVERTER 3.3V 2.3W	AM6G-0503SH30Z vs TMR 3-0510HI
IP1203SA Match 55%	XP Power DC DC CONVERTER 3.3V 3W	AM6G-0503SH30Z vs IP1203SA
AM6G-0503SZ Match 91%	DComponents DC DC CONVERTER 3.3V 4.3W	AM6G-0503SH30Z vs AM6G-0503SZ
TMR 6-0510 Match 92%	TRACO Power DC DC CONVERTER 3.3V 4.3W	AM6G-0503SH30Z vs TMR 6-0510
AM3G-0503SH30Z Match 55%	DComponents DC DC CONVERTER 3.3V 2.3W	AM6G-0503SH30Z vs AM3G-0503SH30Z
