AM1D-2412SH60Z

Part No :: AM1D-2412SH60Z

Manufacturer: DComponents

VIGOR # :: 4161587

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: AM1D-2412SH60Z PDF

Country of origin: -

Date code: -

AM1D-2412SH60Z Specifications

Type	Description
Series:	AM1D-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	83mA
Power (Watts):	1 W
Voltage - Isolation:	6 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DC-2412SH60Z Match 100%	DComponents DC DC CONVERTER 12V 1W	AM1D-2412SH60Z vs AM1DC-2412SH60Z
RE-2412S/P Match 86%	RECOM Power DC DC CONVERTER 12V 1W	AM1D-2412SH60Z vs RE-2412S/P
AM1D-2412SH30Z Match 91%	DComponents DC DC CONVERTER 12V 1W	AM1D-2412SH60Z vs AM1D-2412SH30Z
AM1D-2412SH30-RZ Match 91%	DComponents DC DC CONVERTER 12V 1W	AM1D-2412SH60Z vs AM1D-2412SH30-RZ
1S7BE_2412S3U Match 91%	TE Connectivity AMP Connectors DC-DC	AM1D-2412SH60Z vs 1S7BE_2412S3U
F2412S-1WR3 Match 91%	Mornsun DC DC CONVERTER 12V 1W	AM1D-2412SH60Z vs F2412S-1WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 253

Shipped from

HK warehouse

Expected Shipping Date

Oct 28 - Nov 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.2900~~	~~$8.29~~

Current price of AM1D-2412SH60Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-2TL-CV-F1

DC DC CONVERTER 28V 150W

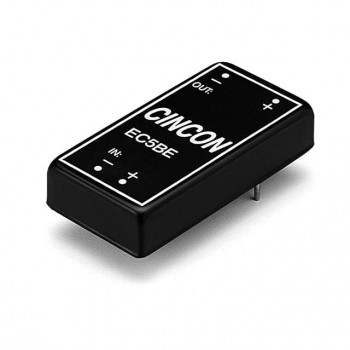

EC5BE11A
