AM1D-2403SH40Z

Part No :: AM1D-2403SH40Z

Manufacturer: DComponents

VIGOR # :: 4161677

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

DataSheet: AM1D-2403SH40Z PDF

Country of origin: -

Date code: -

AM1D-2403SH40Z Specifications

Type	Description
Series:	AM1D-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	303mA
Power (Watts):	1 W
Voltage - Isolation:	4 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	74%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
REM1-243.3S Match 97%	RECOM Power DC DC CONVERTER 3.3V 1W	AM1D-2403SH40Z vs REM1-243.3S
RP-243.3S/P Match 97%	RECOM Power DC DC CONVERTER 3.3V 1W	AM1D-2403SH40Z vs RP-243.3S/P
AM1D-2403SH60Z Match 95%	DComponents DC DC CONVERTER 3.3V 1W	AM1D-2403SH40Z vs AM1D-2403SH60Z
AM1DC-2403SH60Z Match 95%	DComponents DC DC CONVERTER 3.3V 1W	AM1D-2403SH40Z vs AM1DC-2403SH60Z
F2403S-1WR3 Match 96%	Mornsun DC DC CONVERTER 3.3V 1W	AM1D-2403SH40Z vs F2403S-1WR3
1S7BE_2403S3U Match 96%	TE Connectivity AMP Connectors DC-DC	AM1D-2403SH40Z vs 1S7BE_2403S3U

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 322

Shipped from

HK warehouse

Expected Shipping Date

Sep 01 - Sep 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.5700~~	~~$7.57~~

Current price of AM1D-2403SH40Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V150B5M200BL2

DC DC CONVERTER 5V 200W

Q06-5

DC DC CONVERTER 600V 500MW

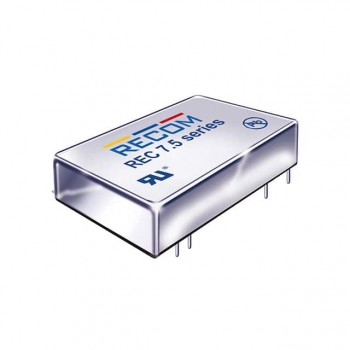

REC7.5-123.3SRW/H2/A/M
