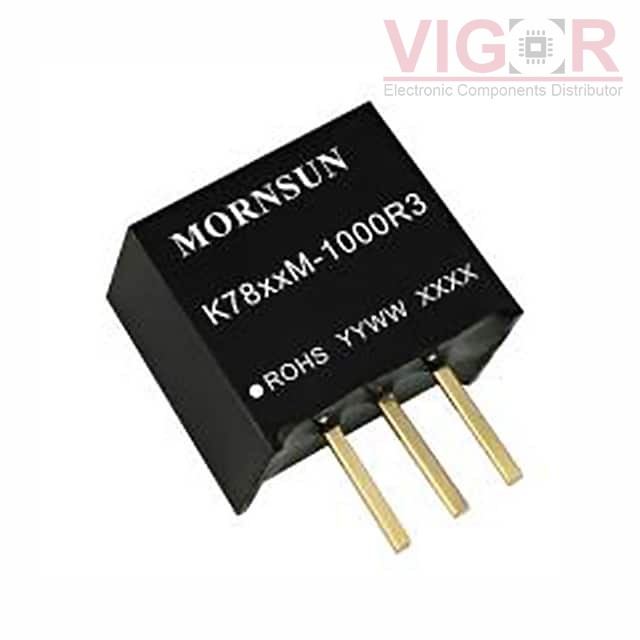

K7803M-1000R3

Part No :: K7803M-1000R3

Manufacturer: Mornsun

VIGOR # :: 4162917

Description: DC DC CONVERTER 3.3V 3.3W

Catalog: DC DC Converters

DataSheet: K7803M-1000R3 PDF

Country of origin: -

Date code: -

K7803M-1000R3 Specifications

Type	Description
Series:	K7803M-1000R3
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	6V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	3.3 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PSR1.0-3P3 Match 100%	P-Duke Technology, Inc. NON-ISOLATED / 1A/ VOUT:3.3	K7803M-1000R3 vs PSR1.0-3P3
LMP78_03-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	K7803M-1000R3 vs LMP78_03-1.0
LMO78_03-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	K7803M-1000R3 vs LMO78_03-1.0
AMSRB1-783.3JZ Match 100%	DComponents DC DC CONVERTER 3.3V 3.3W	K7803M-1000R3 vs AMSRB1-783.3JZ
LME78_03-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	K7803M-1000R3 vs LME78_03-1.0
LCW78_03-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	K7803M-1000R3 vs LCW78_03-1.0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1199

Shipped from

HK warehouse

Expected Shipping Date

Nov 03 - Nov 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.7300~~	~~$2.73~~

Current price of K7803M-1000R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
