PDME1-S5-D12-S

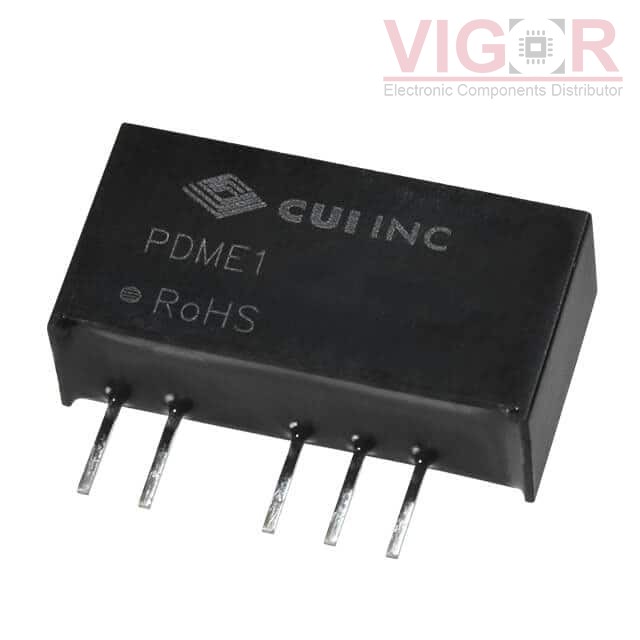

Image is for reference,
please contact us to get the real picture

Part No :: PDME1-S5-D12-S

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-12V 1W

Catalog: DC DC Converters

DataSheet: PDME1-S5-D12-S PDF

Availability: 779 pieces

Unit Price: ~~$2.45000~~

Current price of PDME1-S5-D12-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PDME1-S5-D12-S Specifications

Type	Description
Series:	PDME1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	42mA, 42mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Please confirm the specifications of the products when ordering.
