JAH0224D03

JAH0224D03

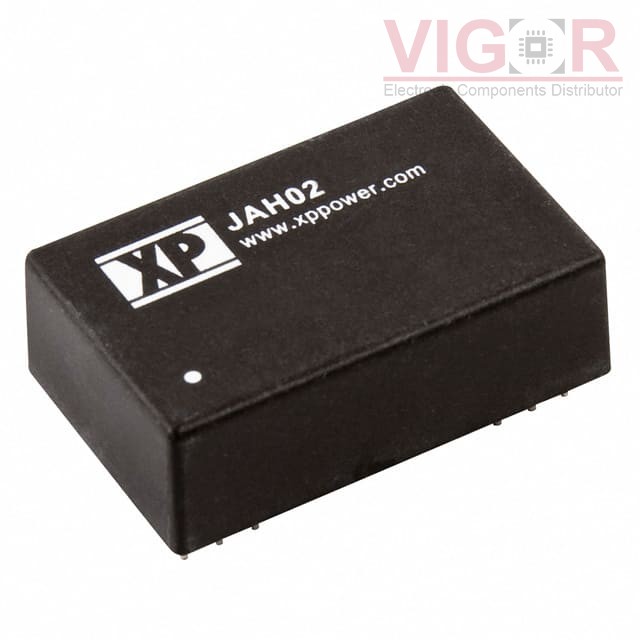

Image is for reference,
please contact us to get the real picture

Part No :

JAH0224D03

Manufacturer
XP Power
Description
DC DC CONVERTER +/-3.3V 2W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Sep 30 - Oct 04 2025
DataSheet
JAH0224D03 PDF
Availability
1062 pieces
Unit Price
$15.04000

Current price of JAH0224D03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JAH0224D03 Specifications
Type Description
Series:JAH (2W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):21.6V
Voltage - Input (Max):26.4V
Voltage - Output 1:3.3V
Voltage - Output 2:-3.3V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):300mA
Power (Watts):2 W
Voltage - Isolation:1 kV
Applications:ITE (Commercial)
Features:SCP, UVLO
Operating Temperature:-40°C ~ 100°C
Efficiency:68%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 12 Leads
Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
