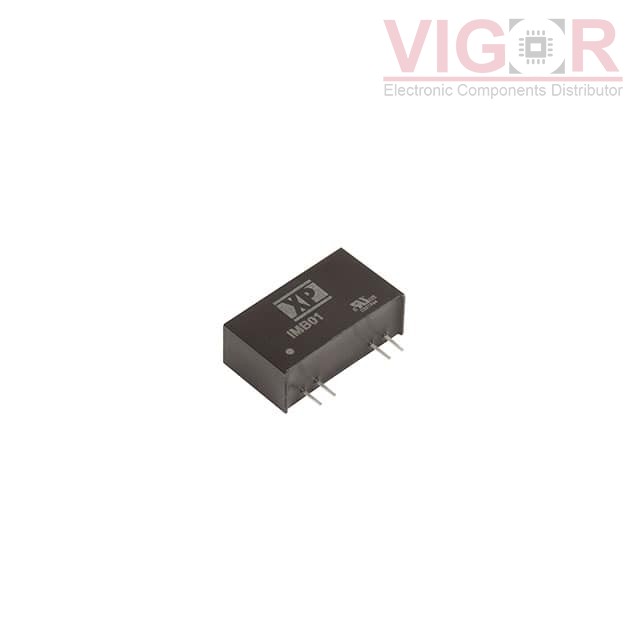

IMB0105S05

Part No :: IMB0105S05

Manufacturer: XP Power

VIGOR # :: 4164904

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: IMB0105S05 PDF

Country of origin: -

Date code: -

IMB0105S05 Specifications

Type	Description
Series:	IMB01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	4 kV
Applications:	Medical
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, TUV, UL
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
F0505S-1WR3 Match 96%	Mornsun DC DC CONVERTER 5V 1W	IMB0105S05 vs F0505S-1WR3
ITV0505SA Match 96%	XP Power DC DC CONVERTER 5V 1W	IMB0105S05 vs ITV0505SA
PEME1-S5-S5-S Match 96%	CUI Inc. DC DC CONVERTER 5V 1W	IMB0105S05 vs PEME1-S5-S5-S
1S7B_0505S4UP Match 100%	TE Connectivity AMP Connectors DC-DC	IMB0105S05 vs 1S7B_0505S4UP
PEM1-S5-S5-S Match 96%	CUI Inc. DC DC CONVERTER 5V 1W	IMB0105S05 vs PEM1-S5-S5-S
AM1DE-0505SH30Z Match 96%	DComponents DC DC CONVERTER 5V 1W	IMB0105S05 vs AM1DE-0505SH30Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 88

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.9500~~	~~$12.95~~

Current price of IMB0105S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

60DAW4_2412S1.6

DC-DC

R0.5S8-0515-R

DC DC CONVERTER 15V 500MW

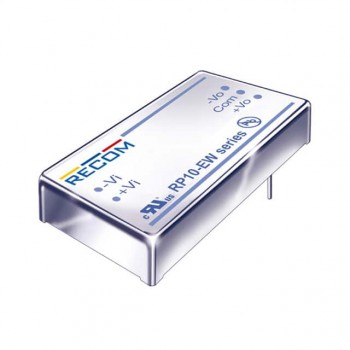

RP10-2405DEW/N/M2
