JCA1012D03

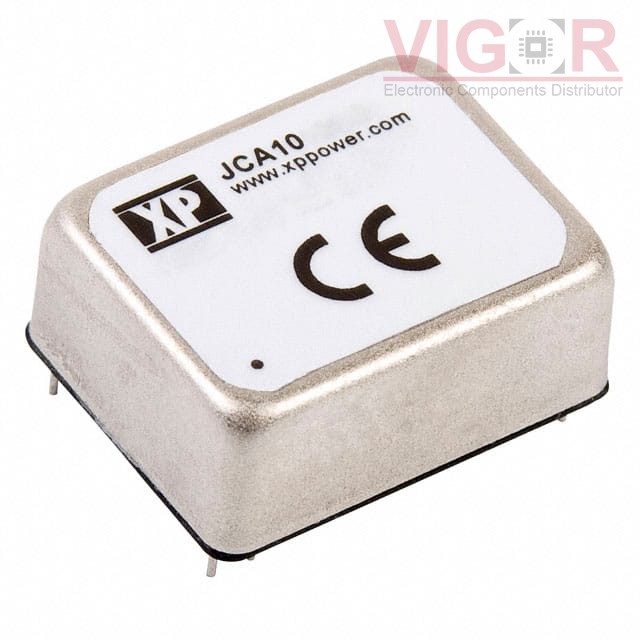

Image is for reference,
please contact us to get the real picture

Part No :: JCA1012D03

Manufacturer: XP Power

Description: DC DC CONVERTER +/-15V 10W

Catalog: DC DC Converters

DataSheet: JCA1012D03 PDF

Availability: 63 pieces

Unit Price: ~~$37.00000~~

Current price of JCA1012D03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JCA1012D03 Specifications

Type	Description
Series:	JCA (10W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	330mA, 330mA
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1
