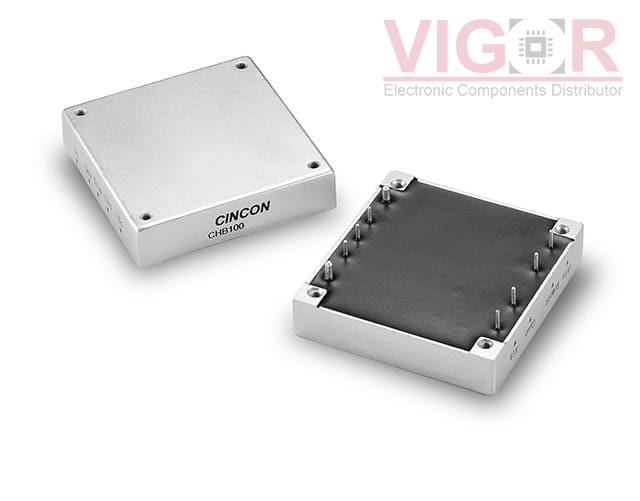

CHB100-24S05N

Part No :: CHB100-24S05N

Manufacturer: Cincon

VIGOR # :: 4166965

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: CHB100-24S05N PDF

Country of origin: -

Date code: -

CHB100-24S05N Specifications

Type	Description
Series:	CHB100 (100W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CBS1002405-RF2 Match 100%	Cosel DC DC CONVERTER 5V 100W	CHB100-24S05N vs CBS1002405-RF2
CBS1002405-F1 Match 100%	Cosel DC DC CONVERTER 5V 100W	CHB100-24S05N vs CBS1002405-F1
RP100H-2405SRW/P Match 95%	RECOM Power DC DC CONVERTER 5V 100W	CHB100-24S05N vs RP100H-2405SRW/P
CBS1002405-F3 Match 100%	Cosel DC DC CONVERTER 5V 100W	CHB100-24S05N vs CBS1002405-F3
CHB100W-48S05N Match 100%	Cincon DC DC CONVERTER 5V 100W	CHB100-24S05N vs CHB100W-48S05N
CHB100-24S05 Match 100%	Cincon DC DC CONVERTER 5V 100W	CHB100-24S05N vs CHB100-24S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1822

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$82.6142~~	~~$82.61~~
12	~~$81.7958~~	~~$981.55~~

Current price of CHB100-24S05N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
