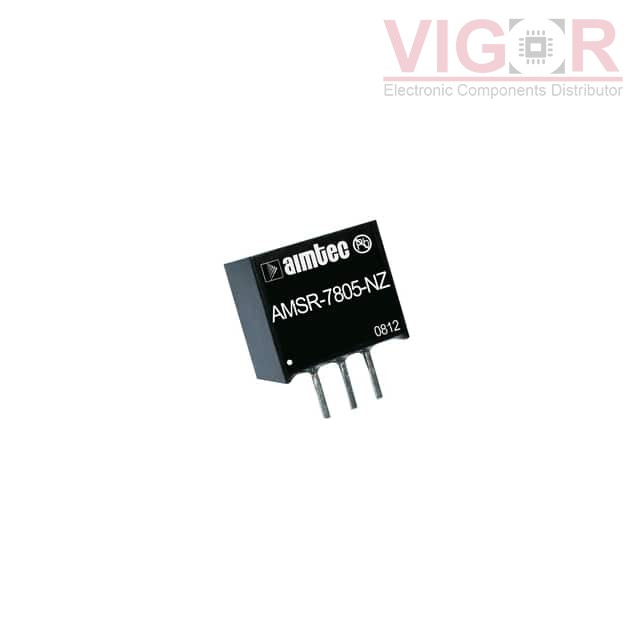

AMSR-7805-NZ

Part No :: AMSR-7805-NZ

Manufacturer: DComponents

VIGOR # :: 4167198

Description: DC DC CONVERTER 5V 2.5W

Catalog: DC DC Converters

DataSheet: AMSR-7805-NZ PDF

Country of origin: -

Date code: -

AMSR-7805-NZ Specifications

Type	Description
Series:	AMSR-78-NZ (7.5W)
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	6.5V
Voltage - Input (Max):	32V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	2.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AMSR-7805Z Match 100%	DComponents DC DC CONVERTER 5V 2.5W	AMSR-7805-NZ vs AMSR-7805Z
LCN78_05-0.5 Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSR-7805-NZ vs LCN78_05-0.5
173950536 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 5V	AMSR-7805-NZ vs 173950536
EPM78V2-05R0-01R0R Match 56%	PowerStor (Eaton) SWITCH REG DCDC CONV 1000MA 5.0V	AMSR-7805-NZ vs EPM78V2-05R0-01R0R
LCB78_05-0.5 Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSR-7805-NZ vs LCB78_05-0.5
R-78HE5.0-0.3 Match 67%	RECOM Power DC DC CONVERTER 5V	AMSR-7805-NZ vs R-78HE5.0-0.3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1021

Shipped from

HK warehouse

Expected Shipping Date

Aug 20 - Aug 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.8800~~	~~$3.88~~

Current price of AMSR-7805-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
