EC3SA-05D05N

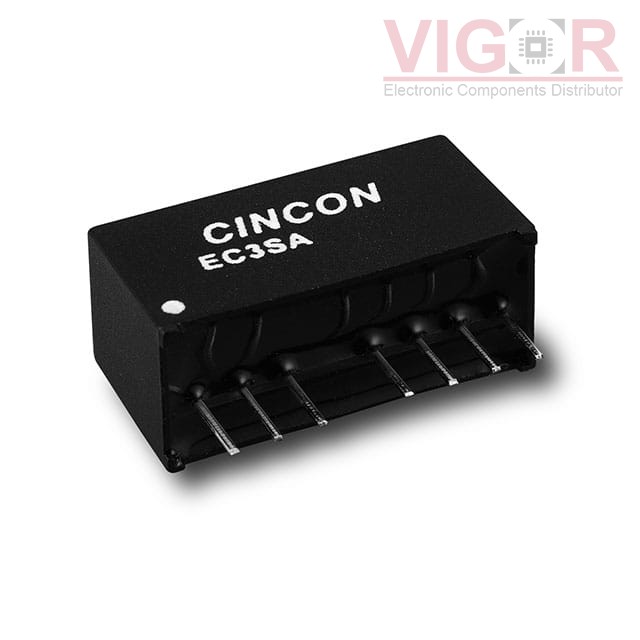

Product image
Product thumb
Part No :

EC3SA-05D05N

Manufacturer
Cincon
VIGOR # :

4167491

Description
DC DC CONVERTER +/-5V 3W
Catalog
DC DC Converters
DataSheet
EC3SA-05D05N PDF
Country of origin
-
Date code
-
ads
EC3SA-05D05N Specifications
Type Description
Series:EC3SA (3W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):9V
Voltage - Output 1:5V
Voltage - Output 2:-5V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):300mA, 300mA
Power (Watts):3 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, SCP
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:78%
Mounting Type:Through Hole
Package / Case:8-SIP Module, 7 Leads
Size / Dimension:0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 662
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $12.3400 $12.34
5 $12.2171 $61.09
10 $12.0943 $120.94
25 $11.8524 $296.31
50 $11.4970 $574.85
100 $11.0371 $1 103.71

Current price of EC3SA-05D05N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
