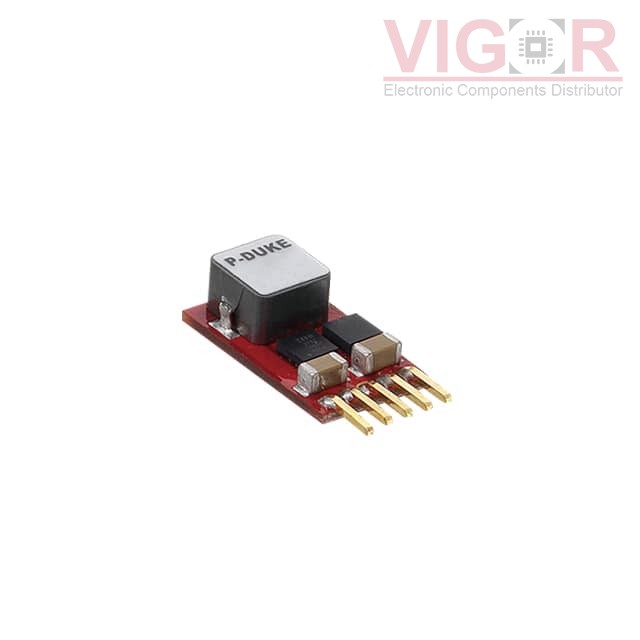

OSR03-24S05

Part No :: OSR03-24S05

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4168411

Description: NON-ISOLATED / 3A/ VOUT:5

Catalog: DC DC Converters

DataSheet: OSR03-24S05 PDF

Country of origin: -

Date code: -

OSR03-24S05 Specifications

Type	Description
Series:	OSR03
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10V
Voltage - Input (Max):	30V
Voltage - Output 1:	3 ~ 6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	18 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	5-SIP Module
Size / Dimension:	0.41" L x 0.24" W x 0.65" H (10.4mm x 6.0mm x 16.5mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
3783 Match 84%	Pololu Corporation DC DC CONVERTER 6V 16W	OSR03-24S05 vs 3783
LMO78_2412-3.0 Match 57%	TE Connectivity AMP Connectors DC-DC POL	OSR03-24S05 vs LMO78_2412-3.0
LMO78_2405-3.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	OSR03-24S05 vs LMO78_2405-3.0
OSR03-24S12 Match 57%	P-Duke Technology, Inc. NON-ISOLATED / 3A/ VOUT:12	OSR03-24S05 vs OSR03-24S12
2861 Match 67%	Pololu Corporation DC DC CONVERTER 9V 18W	OSR03-24S05 vs 2861
V7AH-03H5000 Match 89%	Bel Fuse, Inc. DC DC CONVERTER 5V 15W	OSR03-24S05 vs V7AH-03H5000

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1369

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$31.1300~~	~~$31.13~~

Current price of OSR03-24S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V375A12C600BG5

C 250/425/375 12V/ 50A

REC3-2412DRWZ/H2/A

DC DC CONVERTER +/-12V 3W

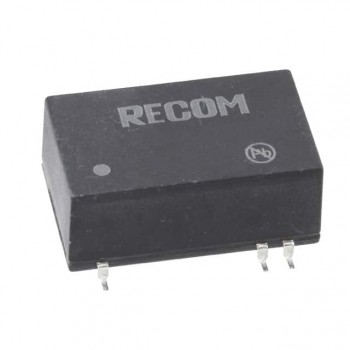

RW2-0512S/H2/SMD
