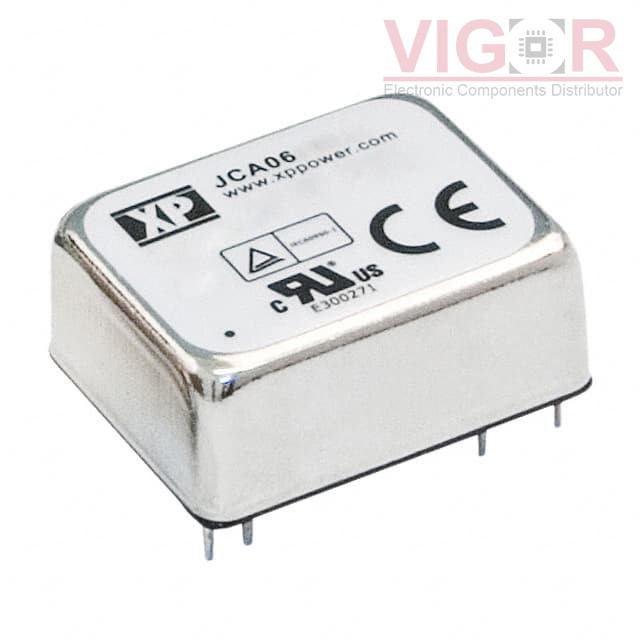

JCA0648S03

Part No :: JCA0648S03

Manufacturer: XP Power

VIGOR # :: 4169317

Description: DC DC CONVERTER 3.3V 6W

Catalog: DC DC Converters

DataSheet: JCA0648S03 PDF

Country of origin: -

Date code: -

JCA0648S03 Specifications

Type	Description
Series:	JCA (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.52A
Power (Watts):	6 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 7 Leads
Size / Dimension:	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCA0348S03 Match 57%	XP Power DC DC CONVERTER 3.3V 3W	JCA0648S03 vs JCA0348S03
JCA0448S03 Match 78%	XP Power DC DC CONVERTER 3.3V 4W	JCA0648S03 vs JCA0448S03
JCE0648S3V3 Match 97%	XP Power DC DC CONVERTER 3.3V 6W	JCA0648S03 vs JCE0648S3V3
JTE0348S3V3 Match 57%	XP Power DC DC CONVERTER 3.3V 3W	JCA0648S03 vs JTE0348S3V3
JTE0648S3V3 Match 97%	XP Power DC DC CONVERTER 3.3V 6W	JCA0648S03 vs JTE0648S3V3
JCA1048S03 Match 65%	XP Power DC DC CONVERTER 3.3V 10W	JCA0648S03 vs JCA1048S03

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 975

Shipped from

HK warehouse

Expected Shipping Date

Aug 14 - Aug 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$29.6100~~	~~$29.61~~
16	~~$29.6100~~	~~$473.76~~

Current price of JCA0648S03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
