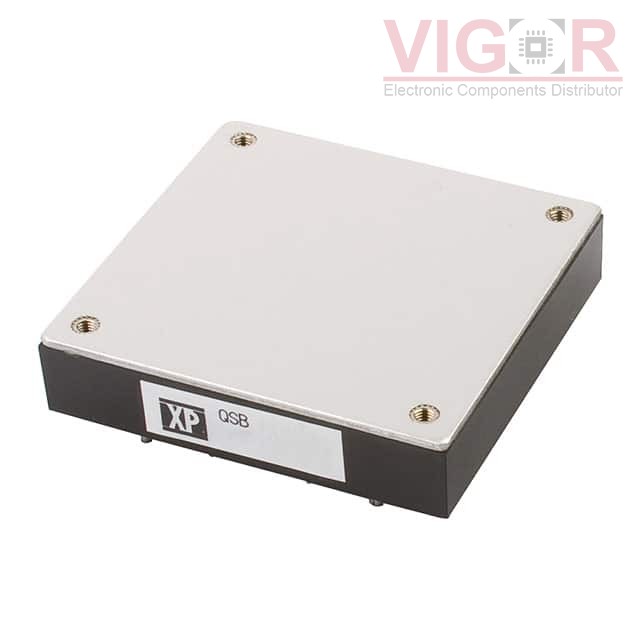

QSB20024S24

Part No :: QSB20024S24

Manufacturer: XP Power

VIGOR # :: 4169683

Description: DC DC CONVERTER 24V 199W

Catalog: DC DC Converters

DataSheet: QSB20024S24 PDF

Country of origin: -

Date code: -

QSB20024S24 Specifications

Type	Description
Series:	QSB (200W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.3A
Power (Watts):	199 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VHB200W-Q24-S28 Match 80%	CUI Inc. DC DC CONVERTER 28V 200W	QSB20024S24 vs VHB200W-Q24-S28
DCM3623T50T26A6T00 Match 79%	Vicor DC DC CONVERTER 24V 160W	QSB20024S24 vs DCM3623T50T26A6T00
VHB200W-Q24-S24 Match 100%	CUI Inc. DC DC CONVERTER 24V 200W	QSB20024S24 vs VHB200W-Q24-S24
DCM3623T50T26A6M00 Match 79%	Vicor DC DC CONVERTER 24V 160W	QSB20024S24 vs DCM3623T50T26A6M00
QSB15024S24 Match 81%	XP Power DC DC CONVERTER 24V 150W	QSB20024S24 vs QSB15024S24
V28B24H150BN2 Match 71%	Vicor DC DC CONVERTER 24V 150W	QSB20024S24 vs V28B24H150BN2

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 118

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$170.0000~~	~~$170.00~~
5	~~$164.9000~~	~~$824.50~~
10	~~$159.8010~~	~~$1 598.01~~
25	~~$153.0004~~	~~$3 825.01~~

Current price of QSB20024S24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

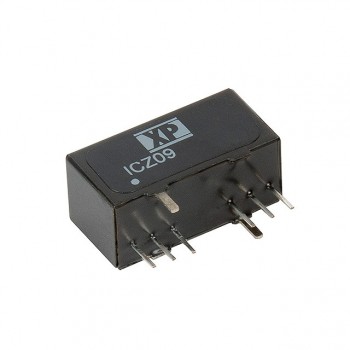

ICZ0912S15
