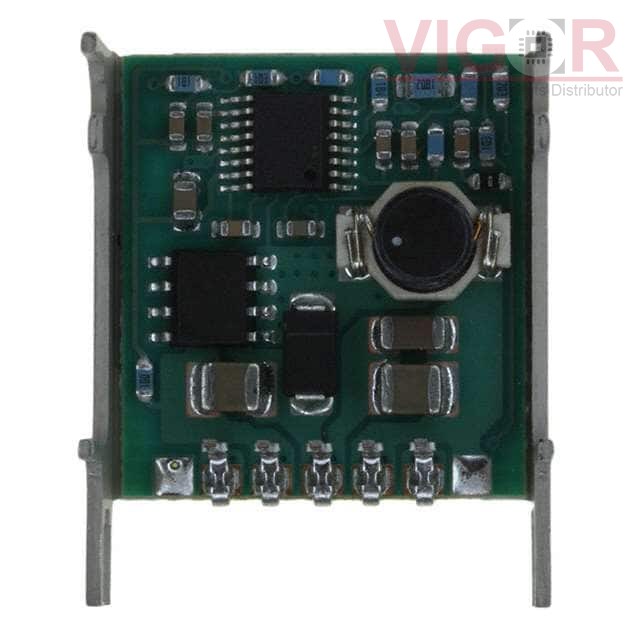

PT5504A

Part No :: PT5504A

Manufacturer: Texas Instruments

VIGOR # :: 4983680

Description: DC DC CONVERTER 1.8V

Catalog: DC DC Converters

DataSheet: PT5504A PDF

Country of origin: -

Date code: -

PT5504A Specifications

Type	Description
Series:	Excalibur™ PT5500
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	83%
Mounting Type:	Through Hole, Right Angle
Package / Case:	5-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5502A Match 55%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5504A vs PT5502A
PT5524A Match 56%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5504A vs PT5524A
PT5503A Match 86%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5504A vs PT5503A
PT5505A Match 75%	Texas Instruments DC DC CONVERTER 1.5V	PT5504A vs PT5505A
PT5404A Match 61%	Texas Instruments DC DC CONVERTER 1.8V	PT5504A vs PT5404A
