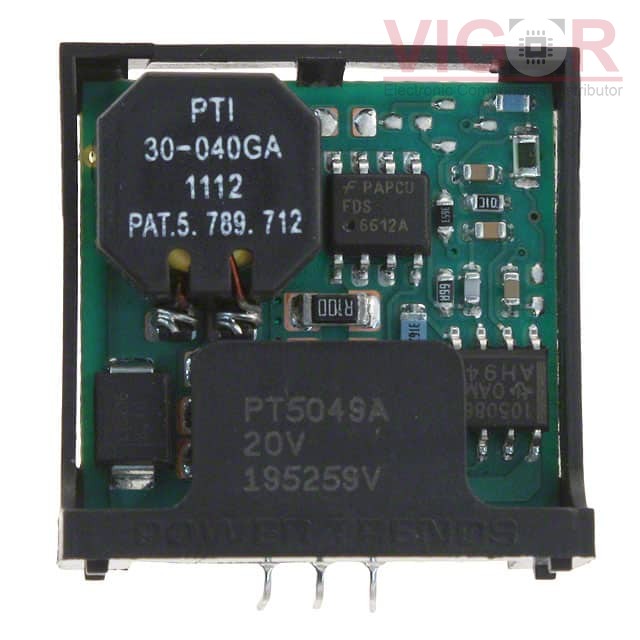

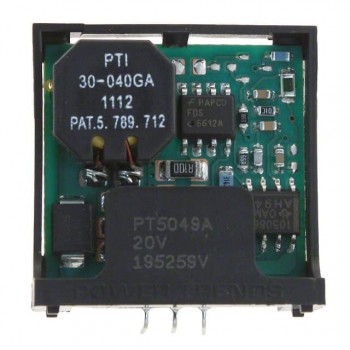

PT5049A

Part No :: PT5049A

Manufacturer: Texas Instruments

VIGOR # :: 4984212

Description: DC DC CONVERTER 20V

Catalog: DC DC Converters

DataSheet: PT5049A PDF

Country of origin: -

Date code: -

PT5049A Specifications

Type	Description
Series:	PT5040
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	14V
Voltage - Output 1:	20V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-20°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5047A Match 74%	Texas Instruments DC DC CONVERTER 18V	PT5049A vs PT5047A
PT5049M Match 100%	Texas Instruments DC DC CONVERTER 20V	PT5049A vs PT5049M
PT5047M Match 74%	Texas Instruments DC DC CONVERTER 18V	PT5049A vs PT5047M
