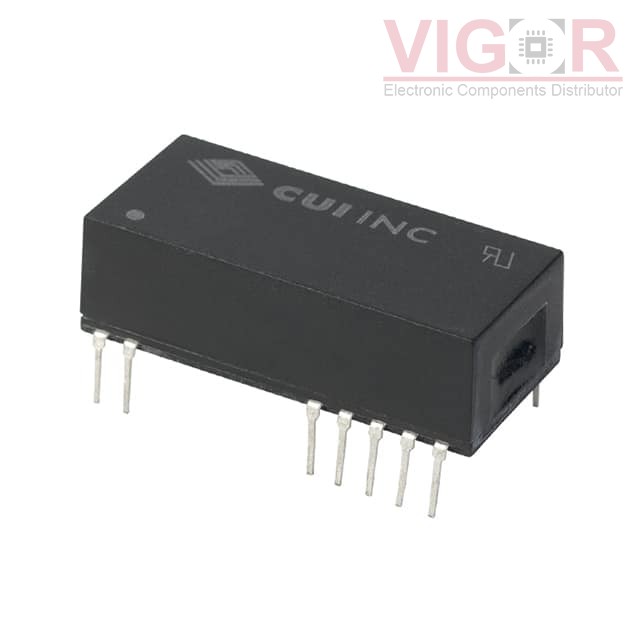

VHD1-S12-S9-DIP

Part No :: VHD1-S12-S9-DIP

Manufacturer: CUI Inc.

VIGOR # :: 4984810

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: VHD1-S12-S9-DIP PDF

Country of origin: -

Date code: -

VHD1-S12-S9-DIP Specifications

Type	Description
Series:	VHD1-DIP (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	6 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	72%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.27" L x 0.58" W x 0.37" H (32.3mm x 14.7mm x 9.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RV-1209S/P Match 50%	RECOM Power DC DC CONVERTER 9V 2W	VHD1-S12-S9-DIP vs RV-1209S/P
RV-1209S Match 50%	RECOM Power DC DC CONVERTER 9V 2W	VHD1-S12-S9-DIP vs RV-1209S
VHD1-S12-S12-DIP Match 63%	CUI Inc. DC DC CONVERTER 12V 1W	VHD1-S12-S9-DIP vs VHD1-S12-S12-DIP
