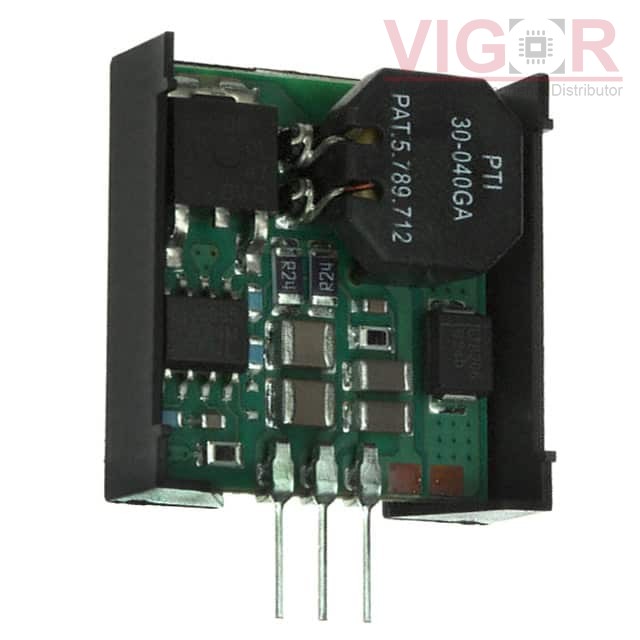

PT78NR206V

Part No :: PT78NR206V

Manufacturer: Texas Instruments

VIGOR # :: 4985224

Description: DC DC CONVERTER -6V

Catalog: DC DC Converters

DataSheet: PT78NR206V PDF

Country of origin: -

Date code: -

PT78NR206V Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.8A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.01" L x 0.38" W x 0.98" H (25.7mm x 9.7mm x 24.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TR2024S1V8 Match 85%	XP Power DC DC CONVERTER 1.8V	PT78NR206V vs TR2024S1V8
PSR02-12S2P5 Match 85%	P-Duke Technology, Inc. NON-ISOLATED / 2A/ VOUT:2.5	PT78NR206V vs PSR02-12S2P5
TR2024S3V3 Match 85%	XP Power DC DC CONVERTER 3.3V	PT78NR206V vs TR2024S3V3
TR2024S1V2 Match 85%	XP Power DC DC CONVERTER 1.2V	PT78NR206V vs TR2024S1V2
P7805-2000-S Match 85%	CUI Inc. DC DC CONVERTER 5V 10W	PT78NR206V vs P7805-2000-S
TR2024S2V5 Match 85%	XP Power DC DC CONVERTER 2.5V	PT78NR206V vs TR2024S2V5
