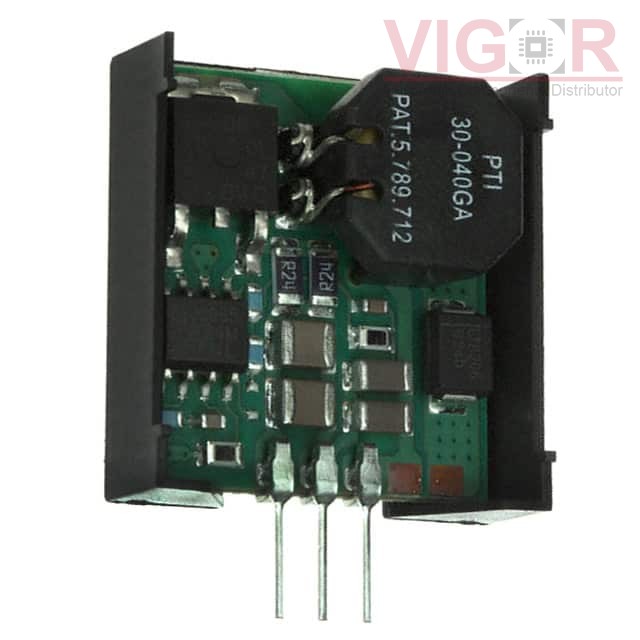

PT78NR106V

Part No :: PT78NR106V

Manufacturer: Texas Instruments

VIGOR # :: 4985244

Description: DC DC CONVERTER -6V

Catalog: DC DC Converters

DataSheet: PT78NR106V PDF

Country of origin: -

Date code: -

PT78NR106V Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	21V
Voltage - Output 1:	-6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	800mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EPM78V2-03R3-01R0R Match 68%	PowerStor (Eaton) SWITCH REG DCDC CONV 1000MA 3.3V	PT78NR106V vs EPM78V2-03R3-01R0R
LC78_03-1.0 Match 68%	TE Connectivity AMP Connectors DC-DC POL	PT78NR106V vs LC78_03-1.0
AMSRB1-783.3Z Match 68%	DComponents DC DC CONVERTER 3.3V 3.3W	PT78NR106V vs AMSRB1-783.3Z
PSR1.0-2P5 Match 68%	P-Duke Technology, Inc. DC DC CONVERTER 2.5V 2.5W	PT78NR106V vs PSR1.0-2P5
173010335 Match 68%	Würth Elektronik Midcom DC DC CONVERTER 3.3V 3.3W	PT78NR106V vs 173010335
P78E03-1000 Match 68%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78NR106V vs P78E03-1000
