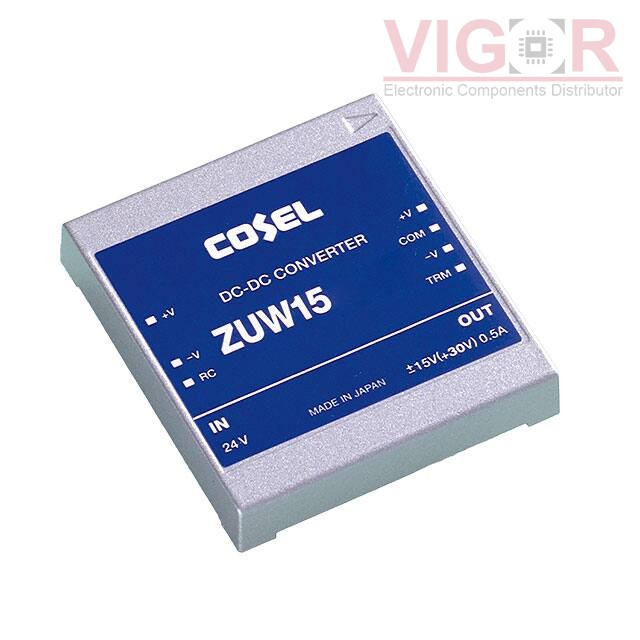

ZUW150515

Part No :: ZUW150515

Manufacturer: Cosel

VIGOR # :: 4985974

Description: DC DC CONVERTER +/-15V

Catalog: DC DC Converters

DataSheet: ZUW150515 PDF

Country of origin: -

Date code: -

ZUW150515 Specifications

Type	Description
Series:	ZUW (15W)
Package:	-
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 500mA
Power (Watts):	-
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-20°C ~ 71°C (With Derating)
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
