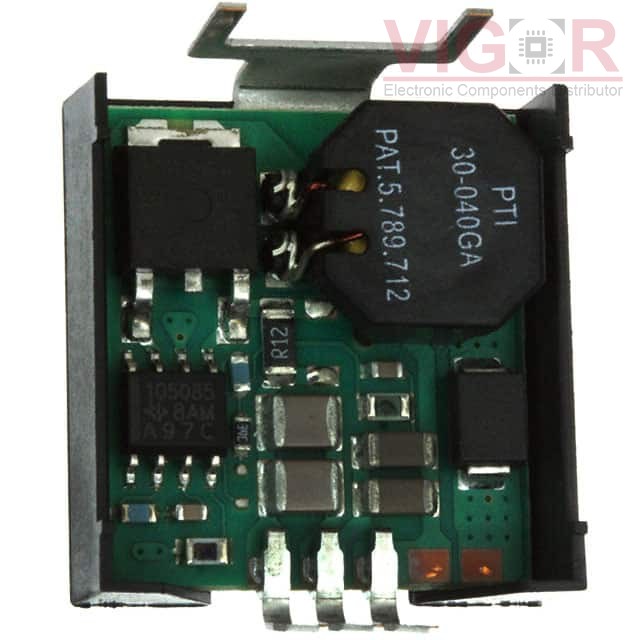

PT78ST109H

Part No :: PT78ST109H

Manufacturer: Texas Instruments

VIGOR # :: 4988605

Description: DC DC CONVERTER 9V

Catalog: DC DC Converters

DataSheet: PT78ST109H PDF

Country of origin: -

Date code: -

PT78ST109H Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	13V
Voltage - Input (Max):	38V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT78ST107H Match 66%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78ST109H vs PT78ST107H
PT78ST165H Match 55%	Texas Instruments DC DC CONVERTER 6.5V	PT78ST109H vs PT78ST165H
PT78ST108H Match 84%	Texas Instruments DC DC CONVERTER 8V	PT78ST109H vs PT78ST108H
PT78ST174H Match 68%	Texas Instruments DC DC CONVERTER 7.15V	PT78ST109H vs PT78ST174H
