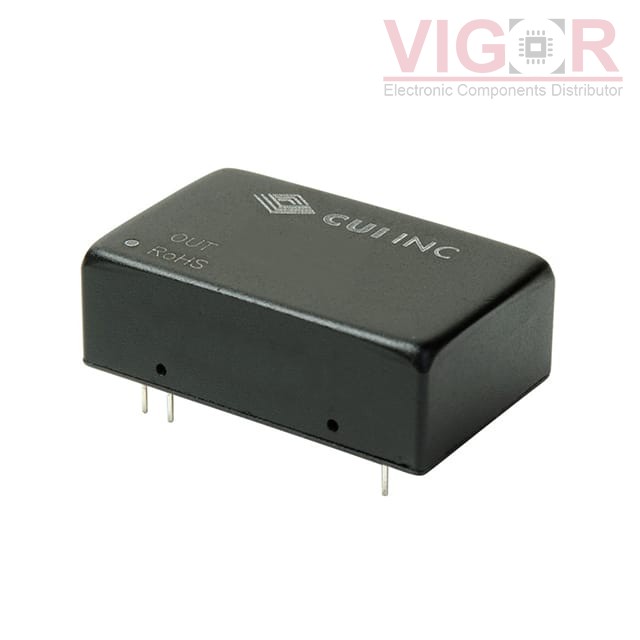

PQZ6-Q24-S3-D

Part No :: PQZ6-Q24-S3-D

Manufacturer: CUI Inc.

VIGOR # :: 4989027

Description: DC DC CONVERTER 3.3V 6W

Catalog: DC DC Converters

DataSheet: PQZ6-Q24-S3-D PDF

Country of origin: -

Date code: -

PQZ6-Q24-S3-D Specifications

Type	Description
Series:	PQZ6-D (6W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	6 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF0824S3V3 Match 78%	XP Power DC DC CONVERTER 3.3V 8W	PQZ6-Q24-S3-D vs JTF0824S3V3
PYBE10-Q24-S3 Match 72%	CUI Inc. DC DC CONVERTER 3.3V 7.9W	PQZ6-Q24-S3-D vs PYBE10-Q24-S3
DJ06S2403A Match 91%	Delta Electronics / Power DC DC CONVERTER 3.3V 6W	PQZ6-Q24-S3-D vs DJ06S2403A
NCS6S1203C Match 94%	Murata Power Solutions DC DC CONVERTER 3.3V 5W	PQZ6-Q24-S3-D vs NCS6S1203C
EC7AW-24S33 Match 76%	Cincon DC-DC CONVERTER	PQZ6-Q24-S3-D vs EC7AW-24S33
EC7AW-24S33N Match 76%	Cincon DC-DC CONVERTER	PQZ6-Q24-S3-D vs EC7AW-24S33N
