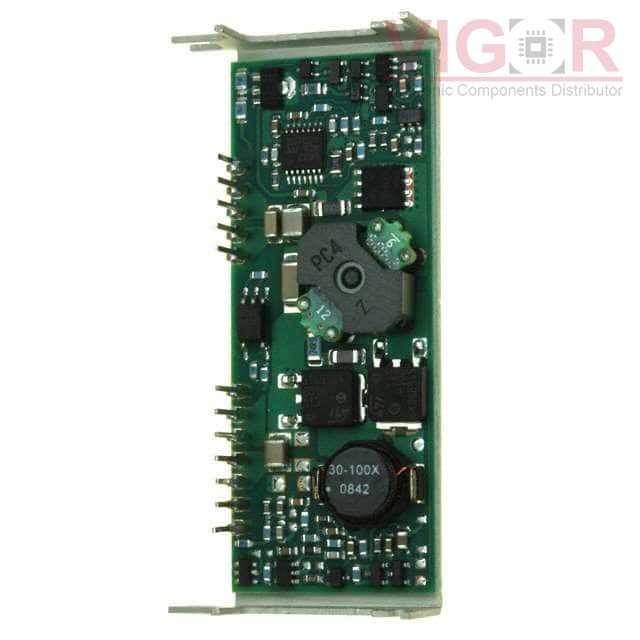

PT4508N

Part No :: PT4508N

Manufacturer: Texas Instruments

VIGOR # :: 4989531

Description: DC DC CONVERTER 2.5V 20W

Catalog: DC DC Converters

DataSheet: PT4508N PDF

Country of origin: -

Date code: -

PT4508N Specifications

Type	Description
Series:	Excalibur™ PT4500 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	40V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4507N Match 71%	VIGOR DC-DC POWER SUPPLY MODULE	PT4508N vs PT4507N
PT4509N Match 64%	Texas Instruments DC DC CONVERTER 1.2V 20W	PT4508N vs PT4509N
PT4501N Match 76%	Texas Instruments DC DC CONVERTER 3.3V 20W	PT4508N vs PT4501N
PT4502N Match 55%	Texas Instruments DC DC CONVERTER 5V 20W	PT4508N vs PT4502N
