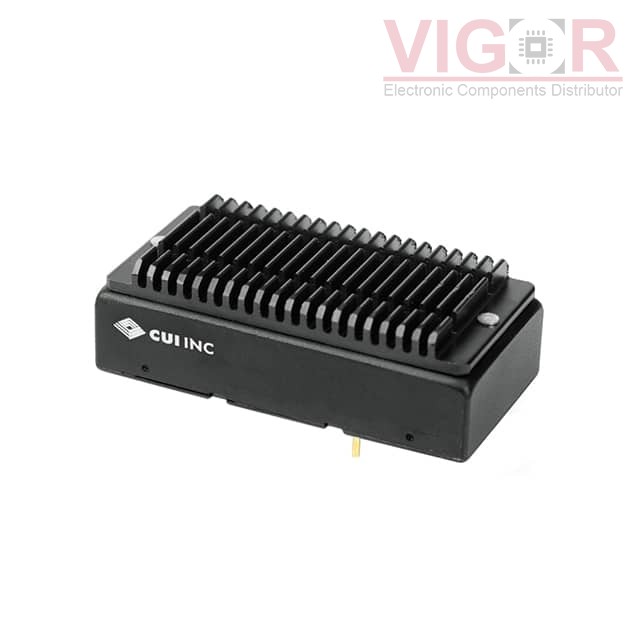

PYB15-Q48-S3-H

Part No :: PYB15-Q48-S3-H

Manufacturer: CUI Inc.

VIGOR # :: 4992057

Description: DC DC CONVERTER 3.3V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q48-S3-H PDF

Country of origin: -

Date code: -

PYB15-Q48-S3-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PYB15-Q48-S3 Match 100%	CUI Inc. DC DC CONVERTER 3.3V 15W	PYB15-Q48-S3-H vs PYB15-Q48-S3
BTI48-03S400D Match 96%	Bellnix Co., LTD. DC DC CONVERTER 3.3V 13W	PYB15-Q48-S3-H vs BTI48-03S400D
EC5BW-48S33T Match 96%	Cincon DC DC CONVERTER 3.3V 13W	PYB15-Q48-S3-H vs EC5BW-48S33T
LRS3050N004N25W Match 50%	NetPower Corporation 18-75VIN,5V 4A, 1X1	PYB15-Q48-S3-H vs LRS3050N004N25W
EC7BW-48S05S Match 55%	Cincon DC DC CONVERTER 5V 20W	PYB15-Q48-S3-H vs EC7BW-48S05S
EC7BW-48S05NS Match 55%	Cincon DC DC CONVERTER 5V 20W	PYB15-Q48-S3-H vs EC7BW-48S05NS
