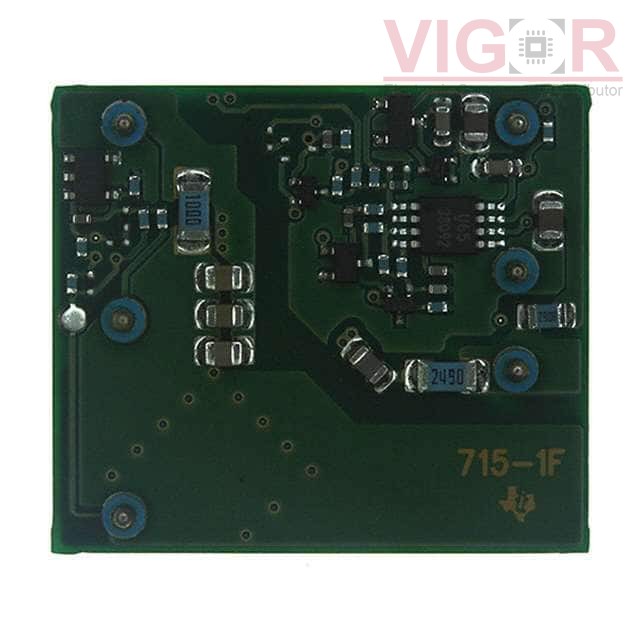

PTMA401120A3AZT

Part No :: PTMA401120A3AZT

Manufacturer: Texas Instruments

VIGOR # :: 4992173

Description: DC DC CONVERTER 12V 10W

Catalog: DC DC Converters

DataSheet: PTMA401120A3AZT PDF

Country of origin: -

Date code: -

PTMA401120A3AZT Specifications

Type	Description
Series:	PTMA40xx (10W)
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SUCS104812B Match 80%	Cosel DC DC CONVERTER 12V 12W	PTMA401120A3AZT vs SUCS104812B
PTMA401120N2AZT Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTMA401120A3AZT vs PTMA401120N2AZT
PTMA401120N2AZ Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTMA401120A3AZT vs PTMA401120N2AZ
PTMA401120N2AST Match 100%	Texas Instruments DC DC CONVERTER 12V 10W	PTMA401120A3AZT vs PTMA401120N2AST
RP15-4815SOF/N-R Match 63%	RECOM Power DC DC CONVERTER 15V 15W	PTMA401120A3AZT vs RP15-4815SOF/N-R
PTMA401120P2AZT Match 100%	Texas Instruments DC DC CONVERTER 12V 10W	PTMA401120A3AZT vs PTMA401120P2AZT
