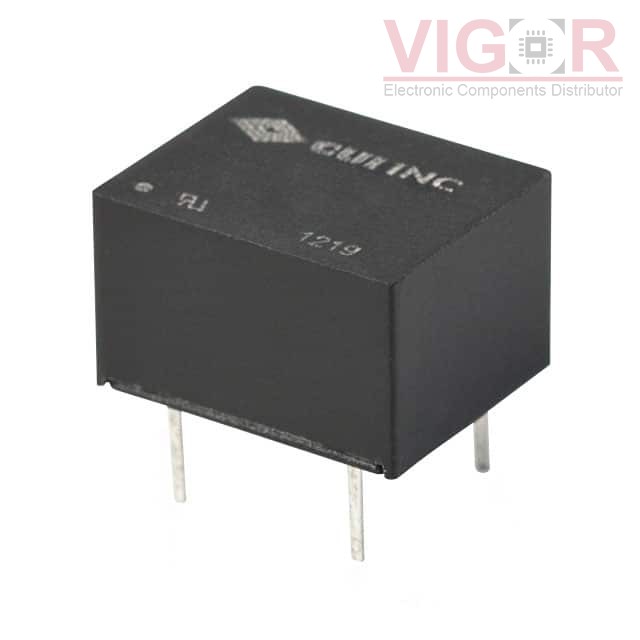

VBSD1-S12-S9-DIP

Part No :: VBSD1-S12-S9-DIP

Manufacturer: CUI Inc.

VIGOR # :: 4992361

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: VBSD1-S12-S9-DIP PDF

Country of origin: -

Date code: -

VBSD1-S12-S9-DIP Specifications

Type	Description
Series:	VBSD1-DIP (1W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.39" W x 0.30" H (12.7mm x 10.0mm x 7.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
NKE1209DC Match 86%	Murata Power Solutions DC DC CONVERTER 9V 1W	VBSD1-S12-S9-DIP vs NKE1209DC
AM1P-1209SZ Match 100%	DComponents DC DC CONVERTER 9V 1W	VBSD1-S12-S9-DIP vs AM1P-1209SZ
MEE1S1209DC Match 100%	Murata Power Solutions DC DC CONVERTER 9V 1W	VBSD1-S12-S9-DIP vs MEE1S1209DC
1D8E_1209S3U Match 86%	TE Connectivity AMP Connectors DC-DC	VBSD1-S12-S9-DIP vs 1D8E_1209S3U
AM1PS-1209S-NZ Match 94%	DComponents DC DC CONVERTER 9V 1W	VBSD1-S12-S9-DIP vs AM1PS-1209S-NZ
AM1P-1209SH30Z Match 86%	DComponents DC DC CONVERTER 9V 1W	VBSD1-S12-S9-DIP vs AM1P-1209SH30Z
