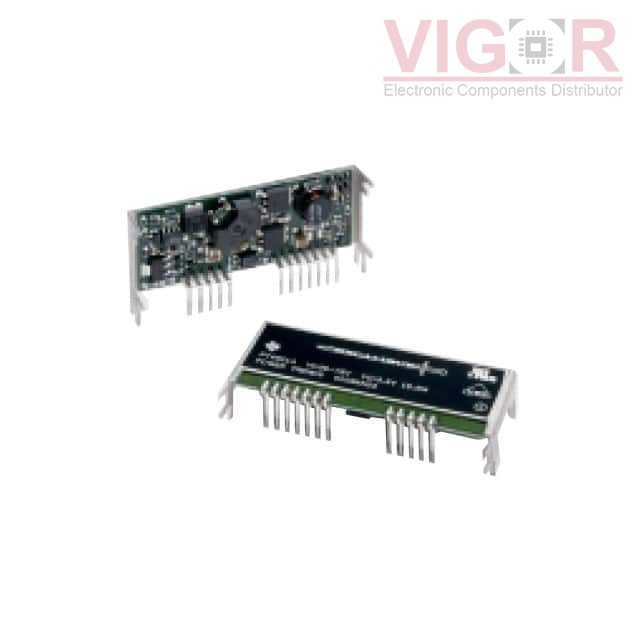

PT4524N

Image is for reference,
please contact us to get the real picture

Part No :

PT4524N

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 15V 20W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 12 - Oct 16 2025
DataSheet
PT4524N PDF
Availability
1525 pieces
Unit Price
$0.00000

Current price of PT4524N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Excalibur™ PT4520 (20W)
Package:Tray
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):36V
Voltage - Input (Max):75V
Voltage - Output 1:15V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1.3A
Power (Watts):20 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:86%
Mounting Type:Through Hole
Package / Case:12-SIP Module
Size / Dimension:2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT VI-24Y-IY-F2

VI-24Y-IY-F2

DC DC CONVERTER 3.3V 10W

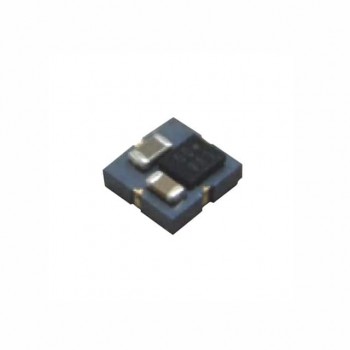

HOT LXDC2XQ11A-298
