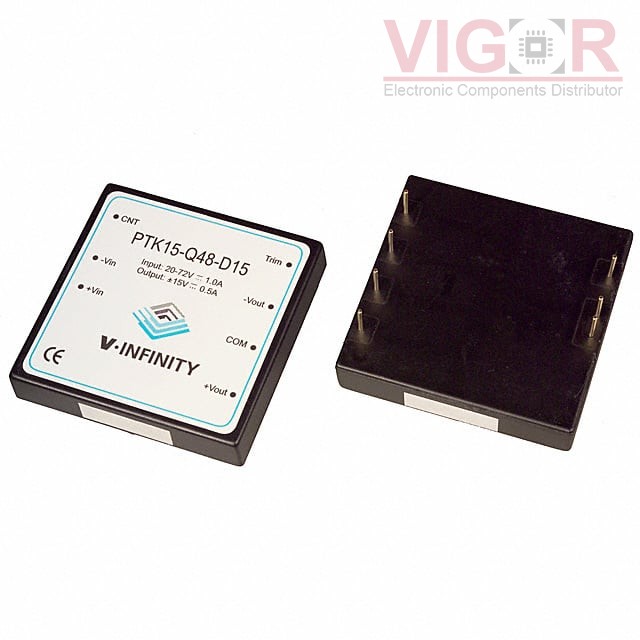

PTK15-Q48-D15

Part No :: PTK15-Q48-D15

Manufacturer: CUI Inc.

VIGOR # :: 4996744

Description: DC DC CONVERTER +/-15V 15W

Catalog: DC DC Converters

DataSheet: PTK15-Q48-D15 PDF

Country of origin: -

Date code: -

PTK15-Q48-D15 Specifications

Type	Description
Series:	PTK15 (15W)
Package:	Box
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	20V
Voltage - Input (Max):	72V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 500mA
Power (Watts):	15 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-20°C ~ 71°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 7 Leads
Size / Dimension:	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
