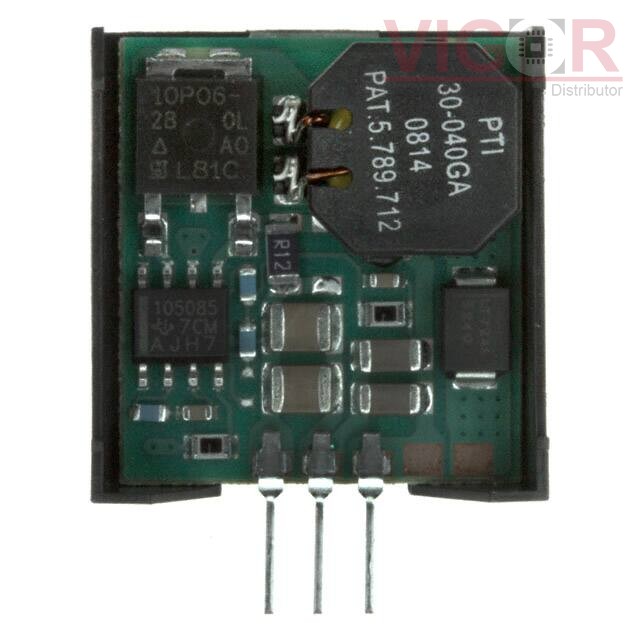

PT78ST112V

Part No :: PT78ST112V

Manufacturer: Texas Instruments

VIGOR # :: 4997167

Description: DC DC CONVERTER 12V

Catalog: DC DC Converters

DataSheet: PT78ST112V PDF

Country of origin: -

Date code: -

PT78ST112V Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	38V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LC78_12-1.0 Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST112V vs LC78_12-1.0
LCW78_12-1.0 Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST112V vs LCW78_12-1.0
LMP78_12-1.0R Match 74%	TE Connectivity AMP Connectors DC-DC POL	PT78ST112V vs LMP78_12-1.0R
PT78ST112T Match 100%	Texas Instruments DC DC CONVERTER 12V	PT78ST112V vs PT78ST112T
PT78ST110V Match 75%	Texas Instruments DC DC CONVERTER 10V	PT78ST112V vs PT78ST110V
R-78C12-1.0/X9 Match 74%	RECOM Power DC DC CONVERTER 12V 12W	PT78ST112V vs R-78C12-1.0/X9

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 620

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT78ST112V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
