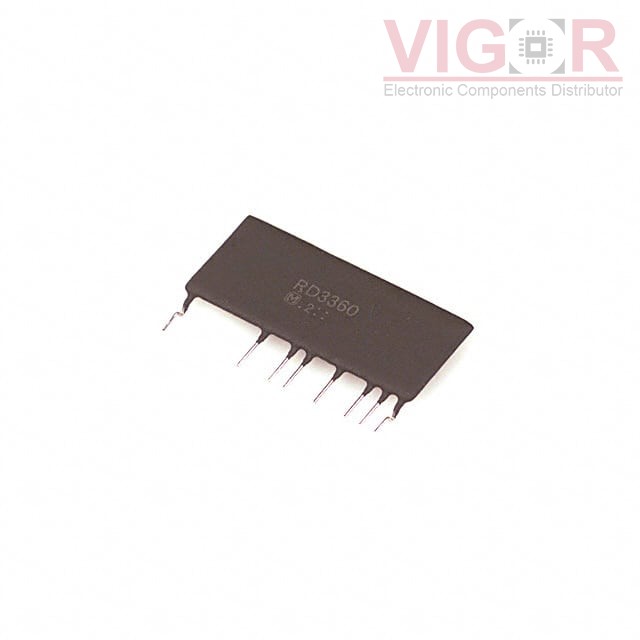

EHD-RD3360

Part No :: EHD-RD3360

Manufacturer: Panasonic

VIGOR # :: 4997556

Description: DC DC CONVERTER 24V 2W

Catalog: DC DC Converters

DataSheet: EHD-RD3360 PDF

Country of origin: -

Date code: -

EHD-RD3360 Specifications

Type	Description
Series:	EHD-RD
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	225V
Voltage - Input (Max):	391V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA
Power (Watts):	2 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-20°C ~ 90°C
Efficiency:	74%
Mounting Type:	Through Hole
Package / Case:	15-SIP Module, 8 Leads
Size / Dimension:	1.57" L x 0.28" W x 0.87" H (40.0mm x 7.0mm x 22.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
