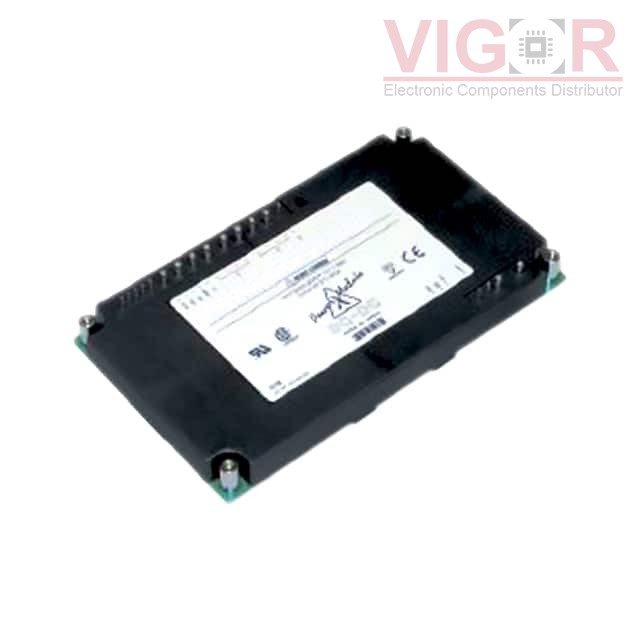

PH100F24-12

Part No :: PH100F24-12

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 4997583

Description: DC DC CONVERTER 12V 100W

Catalog: DC DC Converters

DataSheet: PH100F24-12 PDF

Country of origin: -

Date code: -

PH100F24-12 Specifications

Type	Description
Series:	PH-F (100W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.4A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP
Operating Temperature:	-20°C ~ 85°C
Efficiency:	-
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	3.39" L x 3.27" W x 0.50" H (86.0mm x 83.0mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CQB75W-48S12 Match 70%	Cincon DC DC CONVERTER 12V 75W	PH100F24-12 vs CQB75W-48S12
CQB75W-24S12 Match 70%	Cincon DC DC CONVERTER 12V 75W	PH100F24-12 vs CQB75W-24S12
CQB100W-24S12N Match 90%	Cincon DC DC CONVERTER 12V 100W	PH100F24-12 vs CQB100W-24S12N
CQB100W-48S12N Match 90%	Cincon DC DC CONVERTER 12V 100W	PH100F24-12 vs CQB100W-48S12N
CQB100W-48S12 Match 90%	Cincon DC DC CONVERTER 12V 100W	PH100F24-12 vs CQB100W-48S12
CQB100W-24S12 Match 90%	Cincon DC DC CONVERTER 12V 100W	PH100F24-12 vs CQB100W-24S12
