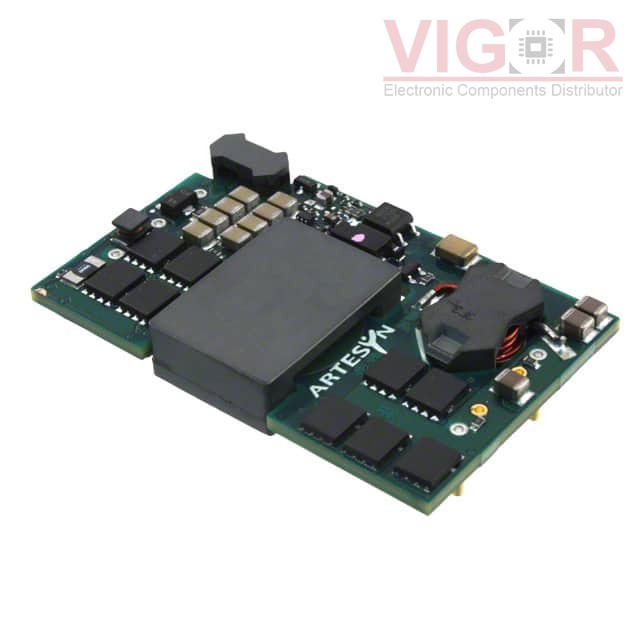

TQW14A-48S12RJ

Part No :: TQW14A-48S12RJ

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 4999130

Description: DC DC CONVERTER 12V 168W

Catalog: DC DC Converters

DataSheet: TQW14A-48S12RJ PDF

Country of origin: -

Date code: -

TQW14A-48S12RJ Specifications

Type	Description
Series:	TQW (168W)
Package:	Tray
Part Status:	Obsolete
Type:	Intermediate Bus Converter
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	14A
Power (Watts):	168 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	94.5%
Mounting Type:	Through Hole
Package / Case:	5-DIP Module, 1/4 Brick
Size / Dimension:	2.30" L x 1.46" W x 0.41" H (58.4mm x 37.1mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 436

Shipped from

HK warehouse

Expected Shipping Date

Apr 28 - May 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TQW14A-48S12RJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
