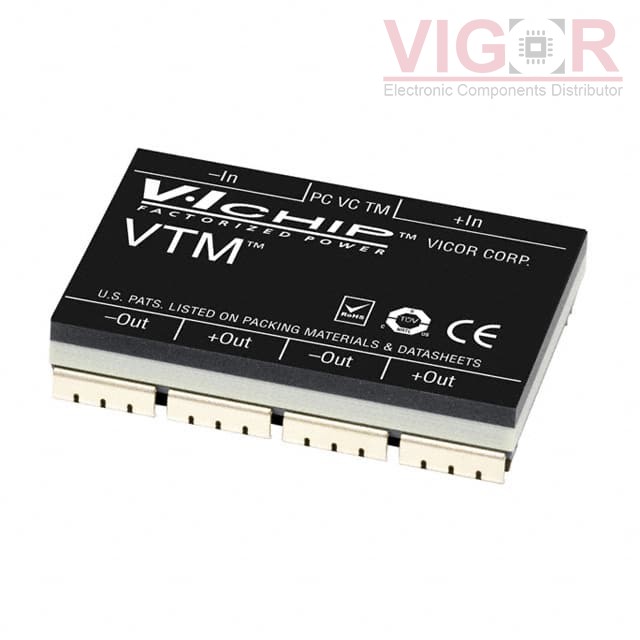

MV036F060M020 – Vicor 120W Voltage Transformation Module

Part No :: MV036F060M020

Manufacturer: Vicor

VIGOR # :: 4999904

Description: DC DC CONVERTER 6V 120W

Catalog: DC DC Converters

DataSheet: MV036F060M020 PDF

Country of origin: -

Date code: -

Product Description

The MV036F060M020 is a 120W voltage transformation module in the VI Chip® VTM® family, engineered by Vicor for high-density power conversion.

It converts a 26V–50V input into a regulated 6V output, delivering up to 20A of output current.

Check the detailed MV036F060M020 specification table below and request a quote to secure inventory and pricing.

MV036F060M020 Specifications

Type	Description
Series:	VI Chip® VTM®
Package:	Tray
Part Status:	Obsolete
Type:	Voltage Transformation Module
Number of Outputs:	1
Voltage - Input (Min):	26V
Voltage - Input (Max):	50V
Voltage - Output 1:	6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	120 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-55°C ~ 125°C
Efficiency:	95.3%
Mounting Type:	Surface Mount
Package / Case:	Module
Size / Dimension:	1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MVTM36BH045M020A00 Match 68%	Vicor DC DC CONVERTER 4.5V 150W	MV036F060M020 vs MVTM36BH045M020A00
MVTM36BF045M027A00 Match 55%	Vicor DC DC CONVERTER 4.5V 150W	MV036F060M020 vs MVTM36BF045M027A00
MVTM36BF060M020A00 Match 93%	Vicor DC DC CONVERTER 6V 150W	MV036F060M020 vs MVTM36BF060M020A00
VTM48EH060M020A00 Match 100%	Vicor DC DC CONVERTER 6V 120W	MV036F060M020 vs VTM48EH060M020A00
MVTM36BF072M017A00 Match 70%	Vicor DC DC CONVERTER 7.2V 150W	MV036F060M020 vs MVTM36BF072M017A00
VTM48EH060M020B00 Match 100%	Vicor DC DC CONVERTER 6V 120W	MV036F060M020 vs VTM48EH060M020B00
