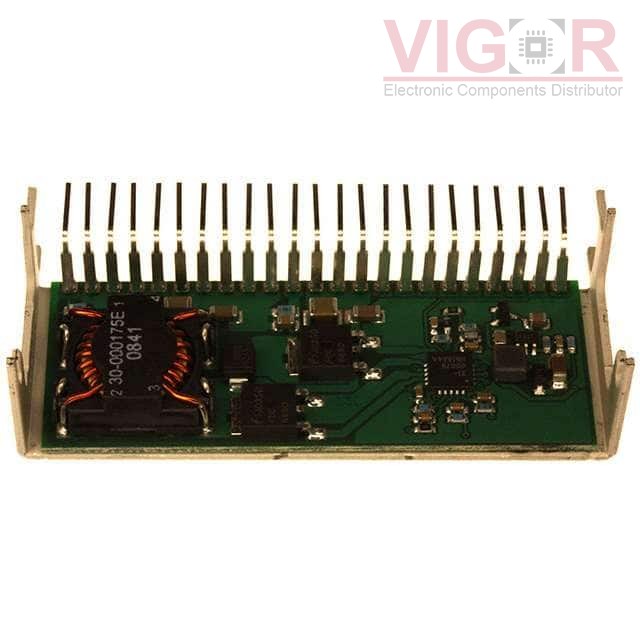

PT6706N

Part No :: PT6706N

Manufacturer: Texas Instruments

VIGOR # :: 5000758

Description: DC DC CONVERTER 2.5V

Catalog: DC DC Converters

DataSheet: PT6706N PDF

Country of origin: -

Date code: -

PT6706N Specifications

Type	Description
Series:	Excalibur™ PT6705
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	17-SIP Module
Size / Dimension:	2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6707N Match 55%	Texas Instruments DC DC CONVERTER 1.8V	PT6706N vs PT6707N
PT6717N Match 55%	Texas Instruments DC DC CONVERTER 1.8V	PT6706N vs PT6717N
PT6716N Match 100%	Texas Instruments DC DC CONVERTER 2.5V	PT6706N vs PT6716N
PT6715N Match 62%	Texas Instruments DC DC CONVERTER 3.3V	PT6706N vs PT6715N
PT6705N Match 62%	Texas Instruments DC DC CONVERTER 3.3V	PT6706N vs PT6705N
