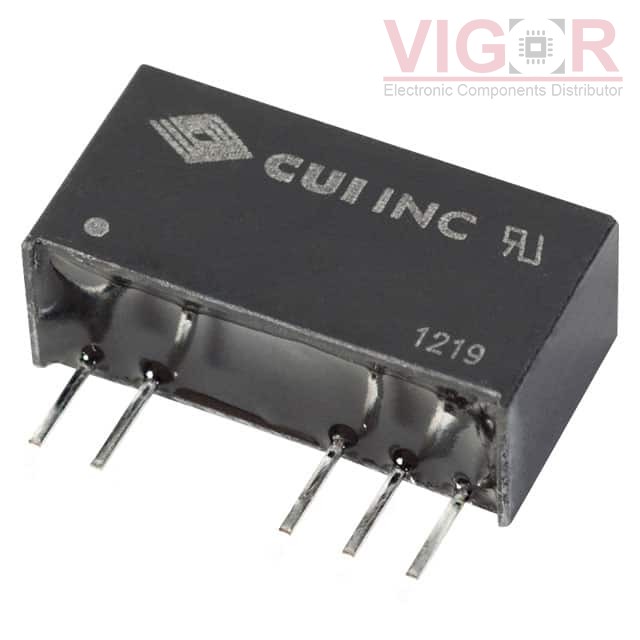

VESD2-S5-D15-SIP

Part No :: VESD2-S5-D15-SIP

Manufacturer: CUI Inc.

VIGOR # :: 5000889

Description: DC DC CONVERTER +/-15V 2W

Catalog: DC DC Converters

DataSheet: VESD2-S5-D15-SIP PDF

Country of origin: -

Date code: -

VESD2-S5-D15-SIP Specifications

Type	Description
Series:	VESD2-SIP (2W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA, 67mA
Power (Watts):	2 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
