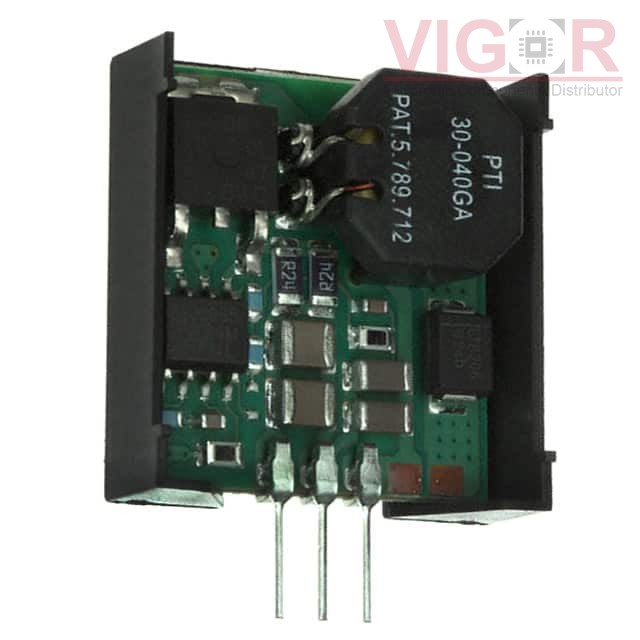

PT78NR114V

Part No :: PT78NR114V

Manufacturer: Texas Instruments

VIGOR # :: 5002097

Description: DC DC CONVERTER -13.9V

Catalog: DC DC Converters

DataSheet: PT78NR114V PDF

Country of origin: -

Date code: -

PT78NR114V Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	15V
Voltage - Output 1:	-13.9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	300mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-78HE5.0-0.3 Match 100%	RECOM Power DC DC CONVERTER 5V	PT78NR114V vs R-78HE5.0-0.3
PT78NR112V Match 59%	Texas Instruments DC DC CONVERTER -12V	PT78NR114V vs PT78NR112V
PT78NR115V Match 100%	Texas Instruments DC DC CONVERTER -15V	PT78NR114V vs PT78NR115V
