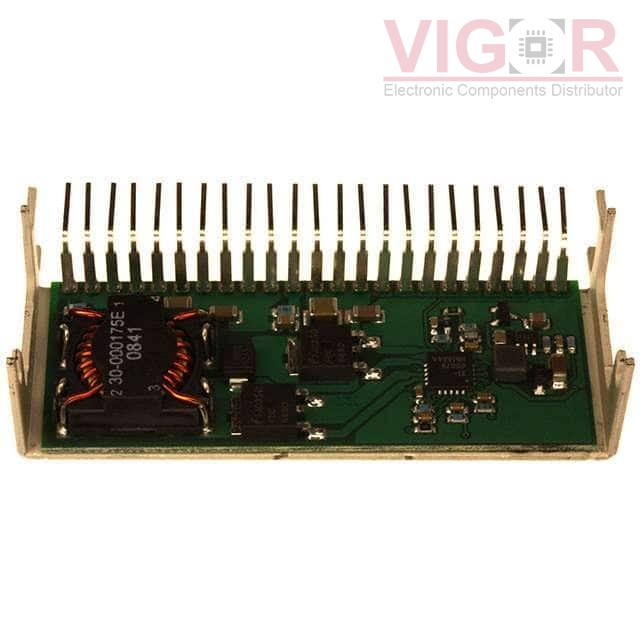

PT6706A

Part No :: PT6706A

Manufacturer: Texas Instruments

VIGOR # :: 5002834

Description: DC DC CONVERTER 2.5V

Catalog: DC DC Converters

DataSheet: PT6706A PDF

Country of origin: -

Date code: -

PT6706A Specifications

Type	Description
Series:	Excalibur™ PT6705
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole, Right Angle
Package / Case:	17-SIP Module
Size / Dimension:	2.58" L x 1.02" W x 0.50" H (65.5mm x 25.9mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6715A Match 62%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6706A vs PT6715A
PT6717A Match 55%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6706A vs PT6717A
PT6716A Match 100%	Texas Instruments DC DC CONVERTER 2.5V	PT6706A vs PT6716A
PT6707A Match 55%	Texas Instruments DC DC CONVERTER 1.8V	PT6706A vs PT6707A
PT6705A Match 62%	Texas Instruments DC DC CONVERTER 3.3V	PT6706A vs PT6705A
