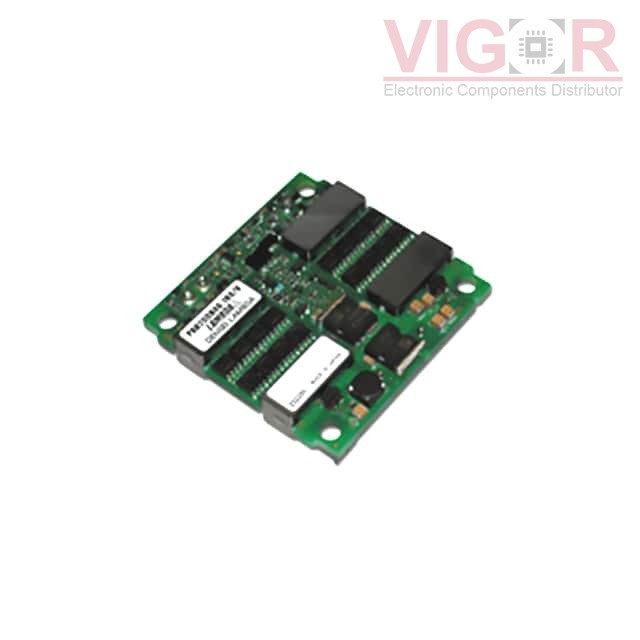

PAH200H481R2/PV

Part No :: PAH200H481R2/PV

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 5004622

Description: DC DC CONVERTER 1.2V 200W

Catalog: DC DC Converters

DataSheet: PAH200H481R2/PV PDF

Country of origin: -

Date code: -

PAH200H481R2/PV Specifications

Type	Description
Series:	PAH200H (200W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	76V
Voltage - Output 1:	1.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	70A
Power (Watts):	200 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	14-DIP Module
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
