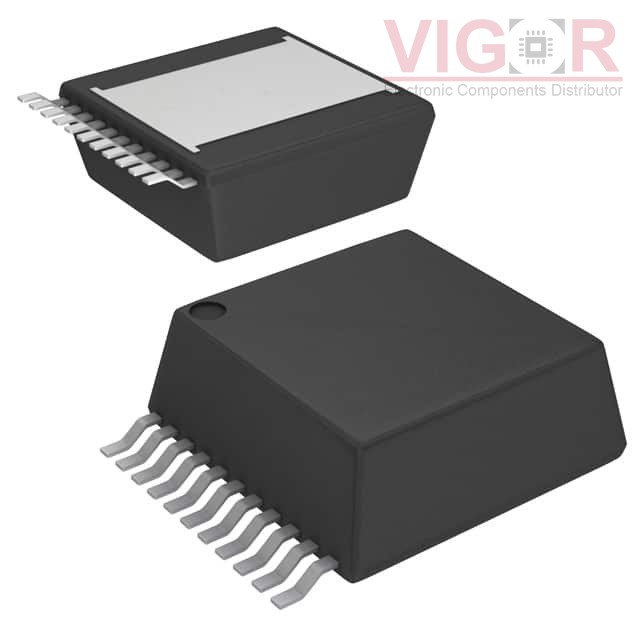

LMZ22010TZX/NOPB

Part No :: LMZ22010TZX/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 5004799

Description: DC DC CONVERTER 0.8-6V

Catalog: DC DC Converters

DataSheet: LMZ22010TZX/NOPB PDF

Country of origin: -

Date code: -

LMZ22010TZX/NOPB Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	6V
Voltage - Input (Max):	20V
Voltage - Output 1:	0.8 ~ 6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	92%
Mounting Type:	Surface Mount
Package / Case:	TO-PMOD-11, Power Module
Size / Dimension:	0.59" L x 0.59" W x 0.23" H (15.0mm x 15.0mm x 5.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LMZ12010TZE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ12010TZE/NOPB
LMZ13610TZ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ13610TZ/NOPB
LMZ22010TZE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ22010TZE/NOPB
LMZ22010TZ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ22010TZ/NOPB
LMZ12010TZ/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ12010TZ/NOPB
LMZ23610TZE/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.8-6V	LMZ22010TZX/NOPB vs LMZ23610TZE/NOPB

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1540

Shipped from

HK warehouse

Expected Shipping Date

Nov 02 - Nov 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LMZ22010TZX/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
