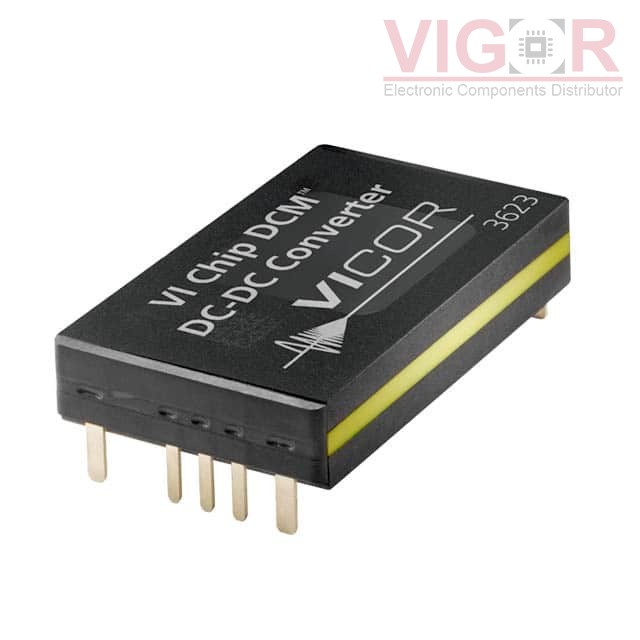

DCM24AP240M320A50

Part No :: DCM24AP240M320A50

Manufacturer: Vicor

VIGOR # :: 5005473

Description: DC DC CONVERTER 24V 320W

Catalog: DC DC Converters

DataSheet: DCM24AP240M320A50 PDF

Country of origin: -

Date code: -

DCM24AP240M320A50 Specifications

Type	Description
Series:	VI Chip® DCM® (320W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13.4A
Power (Watts):	320 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	91.9%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3623T36G26C2M00 Match 100%	Vicor DC DC CONVERTER 24V 321.6W	DCM24AP240M320A50 vs DCM3623T36G26C2M00
MDCM28AP240M320A50 Match 100%	Vicor DC DC CONVERTER 24V 320W	DCM24AP240M320A50 vs MDCM28AP240M320A50
DCM3414B50M26C2T05 Match 95%	Vicor DC DC CONVERTER 24V 320W	DCM24AP240M320A50 vs DCM3414B50M26C2T05
DCM3623T50M26C2M00 Match 100%	Vicor DC DC CONVERTER 24V 321.6W	DCM24AP240M320A50 vs DCM3623T50M26C2M00
DCM3623T50M26C2T00 Match 100%	Vicor DC DC CONVERTER 24V 320W	DCM24AP240M320A50 vs DCM3623T50M26C2T00
DCM3623T36G26C2T00 Match 100%	Vicor DC DC CONVERTER 24V 321.6W	DCM24AP240M320A50 vs DCM3623T36G26C2T00
