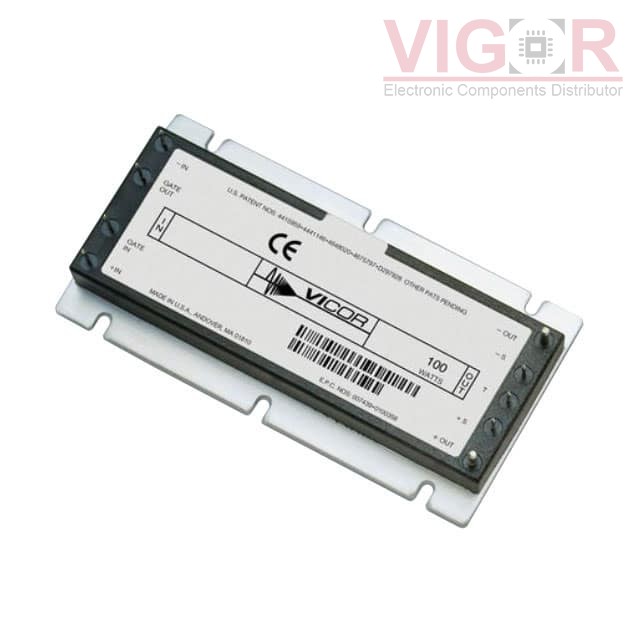

MI-224-MW-S – Vicor 100W Isolated Module

Part No :: MI-224-MW-S

Manufacturer: Vicor

VIGOR # :: 5006934

Description: DC DC CONVERTER 48V 100W

Catalog: DC DC Converters

DataSheet: MI-224-MW-S PDF

Country of origin: -

Date code: -

Product Description

The MI-224-MW-S from Vicor is a 100W isolated module in the MI-200 family.

It converts a 18V–50V input into a regulated 48V output, delivering up to 2.083A of output current.

Review the complete MI-224-MW-S specifications below, or request a quote for current stock and lead-time pricing.

MI-224-MW-S Specifications

Type	Description
Series:	MI-200™ (100W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	50V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.083A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP
Operating Temperature:	-55°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	Full Brick
Size / Dimension:	4.20" L x 1.80" W x 0.50" H (106.7mm x 45.7mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MI-224-MW Match 100%	Vicor DC DC CONVERTER 48V 100W	MI-224-MW-S vs MI-224-MW
MI-22K-MW-S Match 76%	Vicor DC DC CONVERTER 40V 100W	MI-224-MW-S vs MI-22K-MW-S
MI-224-MW-F3 Match 100%	Vicor DC DC CONVERTER 48V 100W	MI-224-MW-S vs MI-224-MW-F3
MI-224-MW-F2 Match 100%	Vicor DC DC CONVERTER 48V 100W	MI-224-MW-S vs MI-224-MW-F2
MI-224-MW-F1 Match 100%	Vicor DC DC CONVERTER 48V 100W	MI-224-MW-S vs MI-224-MW-F1
MI-224-MW-F4 Match 100%	Vicor DC DC CONVERTER 48V 100W	MI-224-MW-S vs MI-224-MW-F4
