PT5103S

Part No :: PT5103S

Manufacturer: Texas Instruments

VIGOR # :: 5009232

Description: DC DC CONVERTER 3.3V 3W

Catalog: DC DC Converters

DataSheet: PT5103S PDF

Country of origin: -

Date code: -

PT5103S Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	26V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	3 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.00" L x 0.38" W x 1.39" H (25.4mm x 9.7mm x 35.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TPSM84203EAB Match 74%	Texas Instruments DC DC CONVERTER 3.3V	PT5103S vs TPSM84203EAB
173010378 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 3.3V 3W	PT5103S vs 173010378
173010342 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 3.3V	PT5103S vs 173010342
R-78E3.3-1.0 Match 100%	RECOM Power DC DC CONVERTER 3.3V 3W	PT5103S vs R-78E3.3-1.0
TSR 1-2433 Match 97%	TRACO Power DC DC CONVERTER 3.3V 3.3W	PT5103S vs TSR 1-2433
TR10S3V3 Match 100%	XP Power DC DC CONVERTER 3.3V	PT5103S vs TR10S3V3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1065

Shipped from

HK warehouse

Expected Shipping Date

Oct 28 - Nov 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PT5103S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-214-CX-F3

DC DC CONVERTER 48V 75W

VI-26W-MX-F1

DC DC CONVERTER 5.5V 75W

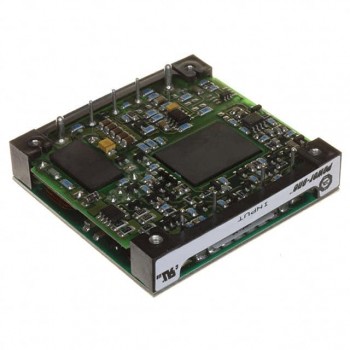

IES013ZE-A
