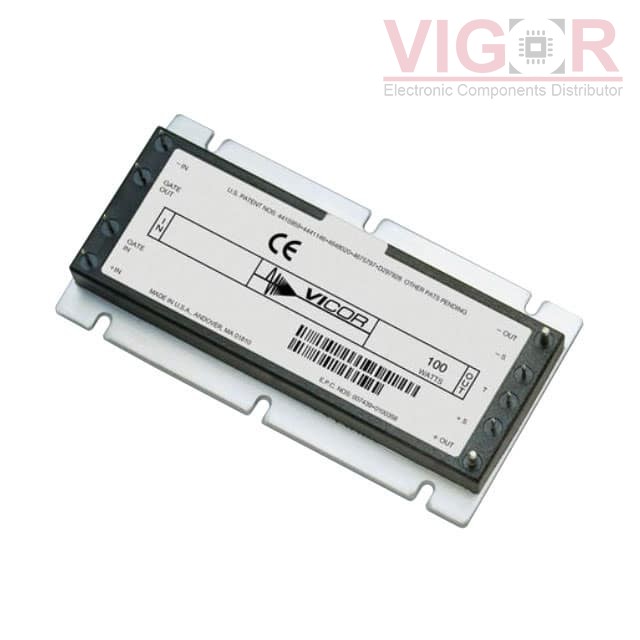

MI-22P-MW-F1

Part No :: MI-22P-MW-F1

Manufacturer: Vicor

VIGOR # :: 5009611

Description: DC DC CONVERTER 13.8V 100W

Catalog: DC DC Converters

DataSheet: MI-22P-MW-F1 PDF

Country of origin: -

Date code: -

MI-22P-MW-F1 Specifications

Type	Description
Series:	MI-200™ (100W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	50V
Voltage - Output 1:	13.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	7.2A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP
Operating Temperature:	-55°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	Full Brick
Size / Dimension:	4.20" L x 2.40" W x 0.75" H (106.7mm x 61.0mm x 19.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MI-22P-MW Match 100%	Vicor DC DC CONVERTER 13.8V 100W	MI-22P-MW-F1 vs MI-22P-MW
MI-22P-MW-S Match 100%	Vicor DC DC CONVERTER 13.8V 100W	MI-22P-MW-F1 vs MI-22P-MW-S
MI-22P-MW-F4 Match 100%	Vicor DC DC CONVERTER 13.8V 100W	MI-22P-MW-F1 vs MI-22P-MW-F4
MI-22P-MW-F3 Match 100%	Vicor DC DC CONVERTER 13.8V 100W	MI-22P-MW-F1 vs MI-22P-MW-F3
MI-222-MW-F3 Match 90%	Vicor DC DC CONVERTER 15V 100W	MI-22P-MW-F1 vs MI-222-MW-F3
MI-22P-MW-F2 Match 100%	Vicor DC DC CONVERTER 13.8V 100W	MI-22P-MW-F1 vs MI-22P-MW-F2
