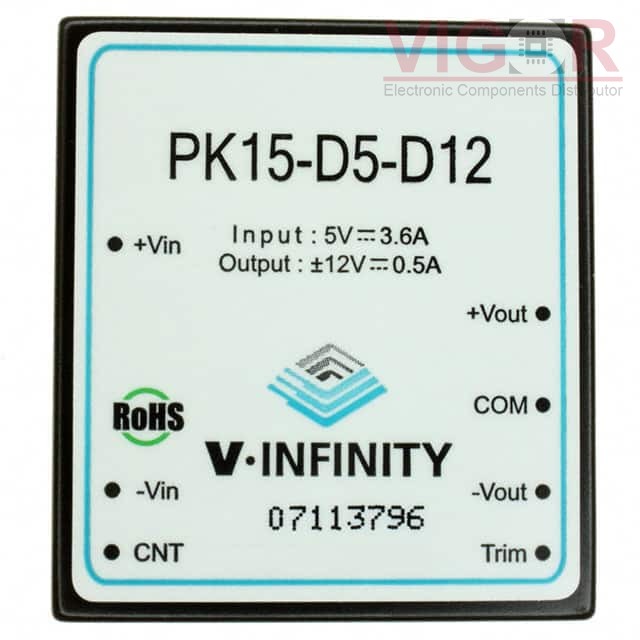

PK15-D5-D12

Part No :: PK15-D5-D12

Manufacturer: CUI Inc.

VIGOR # :: 5009698

Description: DC DC CONVERTER +/-12V 15W

Catalog: DC DC Converters

DataSheet: PK15-D5-D12 PDF

Country of origin: -

Date code: -

PK15-D5-D12 Specifications

Type	Description
Series:	PK15 (15W)
Package:	Box
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	7.2V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 500mA
Power (Watts):	15 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-20°C ~ 71°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	5-DIP Module
Size / Dimension:	1.85" L x 1.65" W x 0.37" H (47.0mm x 41.9mm x 9.5mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-
