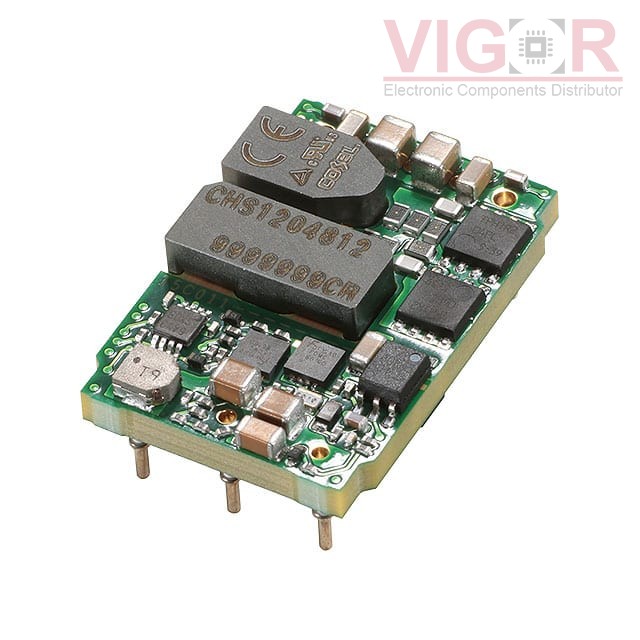

CHS1204805-B

Part No :: CHS1204805-B

Manufacturer: Cosel

VIGOR # :: 5009820

Description: DC DC CONVERTER 5V 120W

Catalog: DC DC Converters

DataSheet: CHS1204805-B PDF

Country of origin: -

Date code: -

CHS1204805-B Specifications

Type	Description
Series:	CHS (120W)
Package:	-
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	76V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	24A
Power (Watts):	120 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module
Size / Dimension:	1.32" L x 0.92" W x 0.50" H (33.5mm x 23.4mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CHS1204805 Match 100%	Cosel DC DC CONVERTER 5V	CHS1204805-B vs CHS1204805
CQS48050-28 Match 90%	Cosel DC DC CONVERTER 5V	CHS1204805-B vs CQS48050-28
PAE100S48-5/V Match 88%	TDK-Lambda, Inc. DC DC CONVERTER 5V	CHS1204805-B vs PAE100S48-5/V
CES48050-20P Match 88%	Cosel DC DC CONVERTER 5V	CHS1204805-B vs CES48050-20P
CQS48050-28-R Match 87%	Cosel DC DC CONVERTER 5V 140W	CHS1204805-B vs CQS48050-28-R
CES48050-20P-B Match 85%	Cosel DC DC CONVERTER 5V 100W	CHS1204805-B vs CES48050-20P-B
