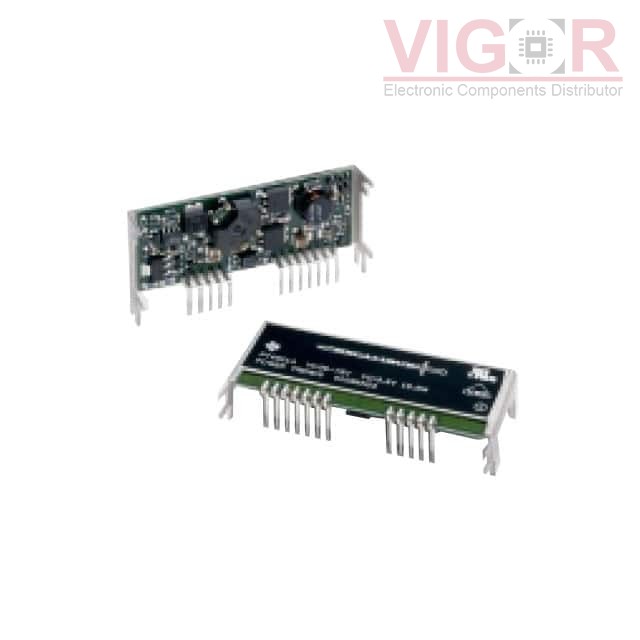

PT4524C

Part No :: PT4524C

Manufacturer: Texas Instruments

VIGOR # :: 5010267

Description: DC DC CONVERTER 15V 20W

Catalog: DC DC Converters

DataSheet: PT4524C PDF

Country of origin: -

Date code: -

PT4524C Specifications

Type	Description
Series:	Excalibur™ PT4520 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.3A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Surface Mount
Package / Case:	12-SIP SMD Module
Size / Dimension:	2.58" L x 1.19" W x 0.34" H (65.5mm x 30.2mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4523C Match 72%	VIGOR DC-DC POWER SUPPLY MODULE	PT4524C vs PT4523C
