PT4314C

PT4314C

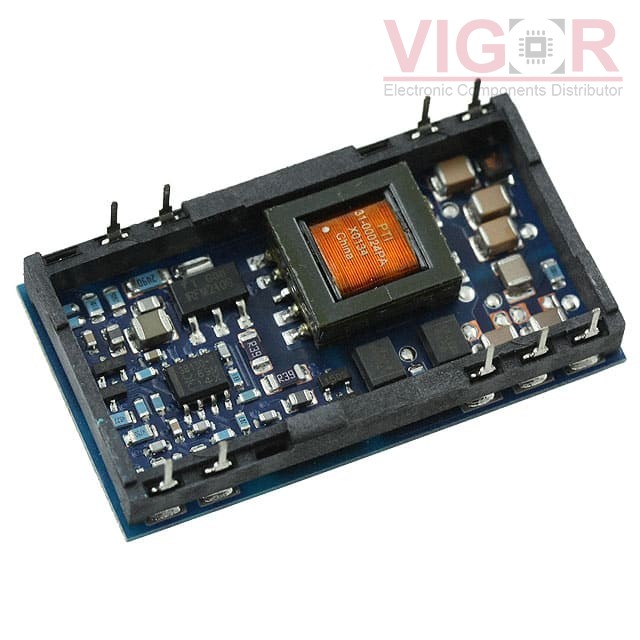

Image is for reference,
please contact us to get the real picture

Part No :

PT4314C

Manufacturer
Texas Instruments
Description
DC DC CONVERTER +/-24V 6W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
PT4314C PDF
Availability
505 pieces
Unit Price
$0.00000

Current price of PT4314C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT4314C Specifications
Type Description
Series:PT4310 (6W)
Package:Tray
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):38V
Voltage - Input (Max):75V
Voltage - Output 1:24V
Voltage - Output 2:-24V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):250mA, 250mA
Power (Watts):6 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:82%
Mounting Type:Surface Mount
Package / Case:18-SMD Module, 9 Leads
Size / Dimension:1.90" L x 1.21" W x 0.32" H (48.3mm x 30.7mm x 8.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
